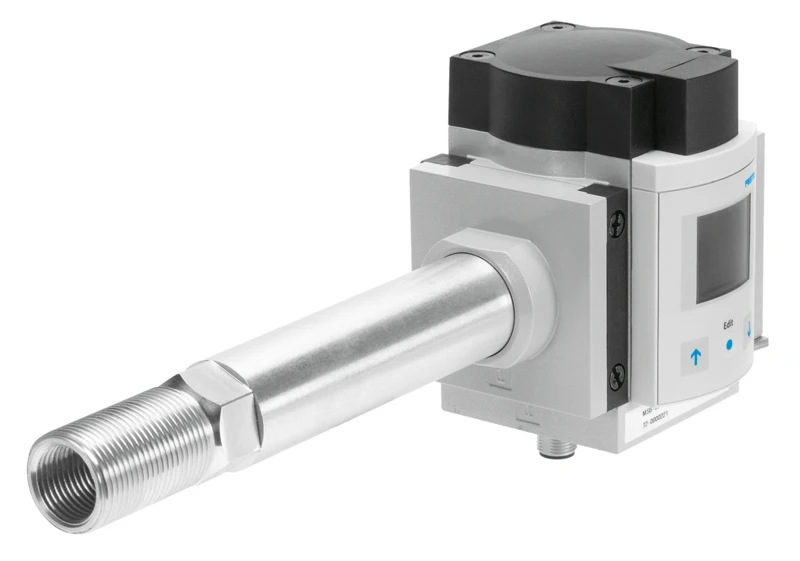

Flow sensor, SFAM-62-5000L-TG12-2SV-M12
SKU: 565384
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Flow sensor SFAM
• Measured variable Volume, Volumetric flow rate
• Flow direction Unidirectional, From left to right
• Measuring principle Thermal
• Measurement method Heat Loss
• Start value for flow rate measuring range 50 l/min
• End value for flow rate measuring range 5000 l/min
• Operating pressure 1.6 MPa
• Operating pressure 16 bar
• Operating pressure 232 psi
• Overload pressure 2 MPa
• Overload pressure 20 bar
• Overload pressure 290 psi
• Operating medium Compressed air to ISO 8573-1:2010 [7:4:4] Nitrogen
• Pneumatic connection G1/2
Buy currently uses Select Automation shop pricing and checkout.
Flow sensor SFAM
• Our modular air flow sensor SFAM is easy to integrate in service units.
• It continuously delivers absolute flow rate information and gathers cumulative values based on air consumption measurement.
• IO-Link® communication with efficient remote parameterisation and replication function
• All-in-one solution with integrated pressure and temperature measurement
• As a stand-alone device or as a space-saving version in the service unit components of the MS series
• Supplies absolute flow information and accumulated air consumption measurements
• High accuracy, even at compressed air quality [7:4:4] to ISO 8573
• Reliable measurement even of high flow rates
• Sustainable operation with system consumption monitoring
