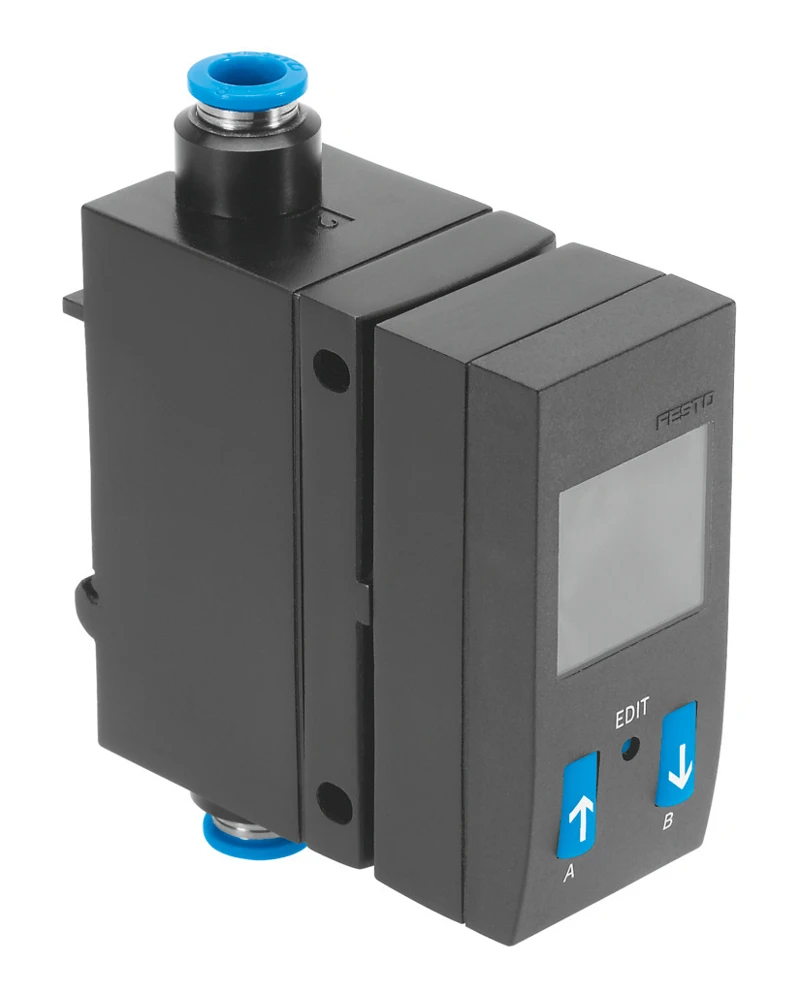

Flow sensor, SFAB-200U-WQ8-2SA-M12
SKU: 565395
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Accessories, Flow sensor
• Measured variable Volume, Volumetric flow rate
• Flow direction Unidirectional, P1 -> P2
• Measuring principle Thermal
• Measurement method Heat Loss
• Start value for flow rate measuring range 2 l/min
• End value for flow rate measuring range 200 l/min
• Operating pressure 0 MPa ... 1 MPa
• Operating pressure 0 bar ... 10 bar
• Operating pressure 0 psi ... 145 psi
• Operating medium Compressed air to ISO 8573-1:2010 [7:4:4] Nitrogen
• Pneumatic connection For tubing O.D. 8 mm
Buy currently uses Select Automation shop pricing and checkout.
Flow sensor SFAB
• Impressive, simple, reliable: our new flow sensors SFAB have an attractive display and control concept, and are very impressive when it comes to flow monitoring, leakage detection and leak tightness testing of end products.
• Flow sensor with integrated digital display
• With unidirectional flow input
• Mounting: H-rail, wall or surface mounting
• Certification: C-Tick
• Sustainable operation with system consumption monitoring
