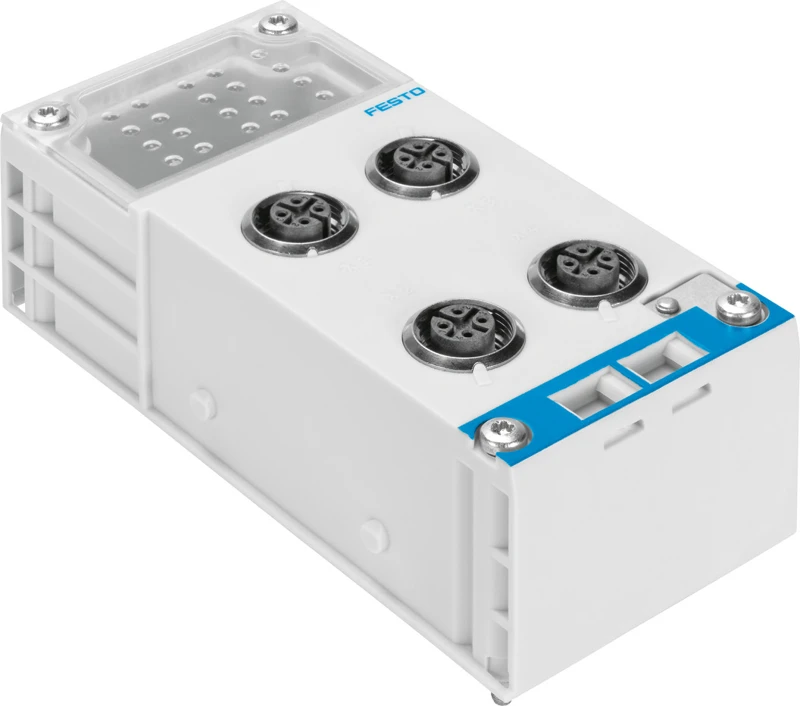

Manifold block, CPX-P-AB-4XM12-4POL-8DE-N-IS
SKU: 565705
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Terminal CPX-P
• Individual component for terminal CPX-P
• Manifold block
• Dimensions (W x L x H) (incl. interlinking block and connection technology) 50 x 107 x 70 mm
• Type of mounting On interlinking block CPX-M-GE..
• Product weight 120 g
• Ambient temperature -5 °C ... 50 °C
• Storage temperature -20 °C ... 70 °C
• Relative air humidity 95 % Non-condensing
• Degree of protection IP65
• Corrosion resistance class CRC 2 - Moderate corrosion stress (when installed)
Buy currently uses Select Automation shop pricing and checkout.
Terminal CPX-P
• An integrated, compact valve terminal and remote I/O in the control cabinet for process industry in zone 2, with everything from a single source and with protection class IP65.
• When combined with MPA valves, it provides a NAMUR-compatible process interface that is highly modular and flexible.
• Use of matching remote I/O and valve terminals in a control cabinet
• Combination with modules of the electrical terminal CPX, which can then be used for hybrid applications
• Unique modular structure
• Comprehensive integrated diagnostic and service functions
• Analogue inputs and outputs with HART protocol
