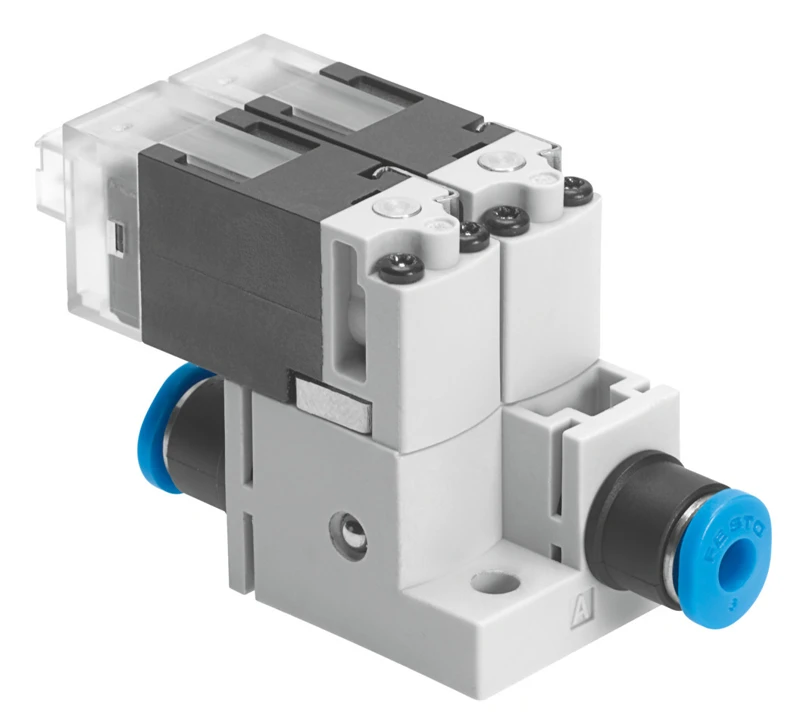

Vacuum valve, MHA1-2X2/2G-1.5-4-4-4
SKU: 566175
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Solenoid valves MH1, 2x2/2-way sub-base valve with LED
• Valve function 2x2/2-way, monostable, closed
• Type of actuation Electric
• Construction width 20 mm
• Standard nominal flow rate (standardised to DIN 1343) 30 l/min
• Pneumatic working port QS-4
• Operating voltage 24V DC
• Operating pressure 0 bar ... 1.5 bar
• Type of reset Mechanical spring
Buy currently uses Select Automation shop pricing and checkout.
Solenoid valve MHA1, MHP1
• Small, fast and versatile and long-lasting: the compact miniature valve can actuate many tightly spaced channels or cylinders.
• Optional: compact electronics module with holding current reduction.
• Directly actuated poppet valve
• Miniature valve: grid dimension 10 mm
• Switching times down to 4 ms
• Sub-base valve
• Manifold block for 2 ... 10 valves
• Use as a pilot valve
• UL certification; same connections and cables as for the VUVG
