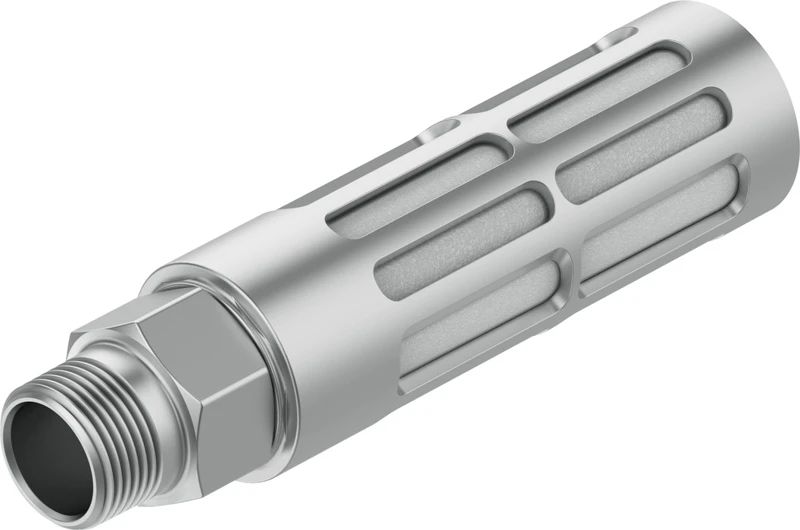

Silencer, U-3/4-B-NPT
SKU: 566823
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Valve terminal VTSA/VTSA-F, NPT
• Accessories
• Silencer
• Code U, Standard design, connecting thread NPT 3/4"
• Packaging unit 1
• Material shock absorber insert PE
• Pneumatic connection 3/4 NPT
• Sound pressure level 81 dB(A)
• Mounting position optional
• Symbol 00991473
• Operating pressure complete temperature range 0 MPa ... 1 MPa
• Operating pressure complete temperature range 0 bar ... 10 bar
• Operating pressure complete temperature range 0 psi ... 145 psi
• Flow rate to atmosphere 11834 l/min
• Operating medium Compressed air to ISO 8573-1:2010 [7:-:-]
Buy currently uses Select Automation shop pricing and checkout.
Valve terminal VTSA/VTSA-F, NPT
• High-performance valves in a sturdy metal housing
• Five valve sizes on one valve terminal (width 65 mm with adapter)
• Standardised from the multi-pin plug to the fieldbus connection and control block
• Dream team: fieldbus valve terminal suitable for electrical peripherals CPX. This means:
– Forward-looking internalcommunication system for actuating the valves and CPX modules
– Four valve sizes on one valve terminal without adapters
• Valve functions for integration in control architectures of higher categories to EN ISO 13849-1
