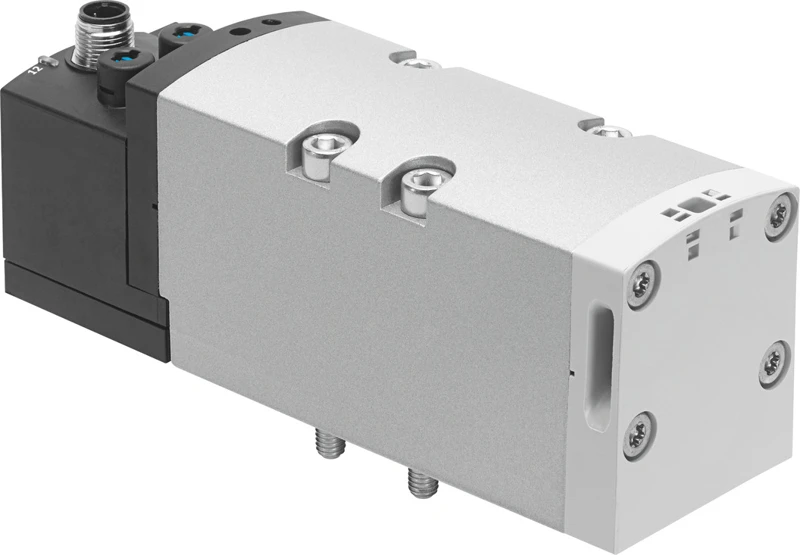

Solenoid valve, VSVA-B-P53C-D-D2-1R5L
SKU: 566997
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Standards-based valves to ISO 5599-1, central plug M12, 3-pin
• Valve function 5/3 closed
• Type of actuation Electric
• Construction width 52 mm
• Standard nominal flow rate (standardised to DIN 1343) 2700 l/min
• Pneumatic working port Sub-base size 2 to ISO 5599-1, G3/8
• Operating voltage 24V DC
• Operating pressure 0.3 MPa ... 1 MPa
• Operating pressure 3 bar ... 10 bar
• Design Piston gate valve
Buy currently uses Select Automation shop pricing and checkout.
Standards-based valve with central plug VSVA
• Standards-based valves ISO 15407-1 with central plug.
• Conforms to ISO 5599-1
• Electrical connection with central plug
• Robust metal housing
• Manifold assembly with mixed sizes possible
