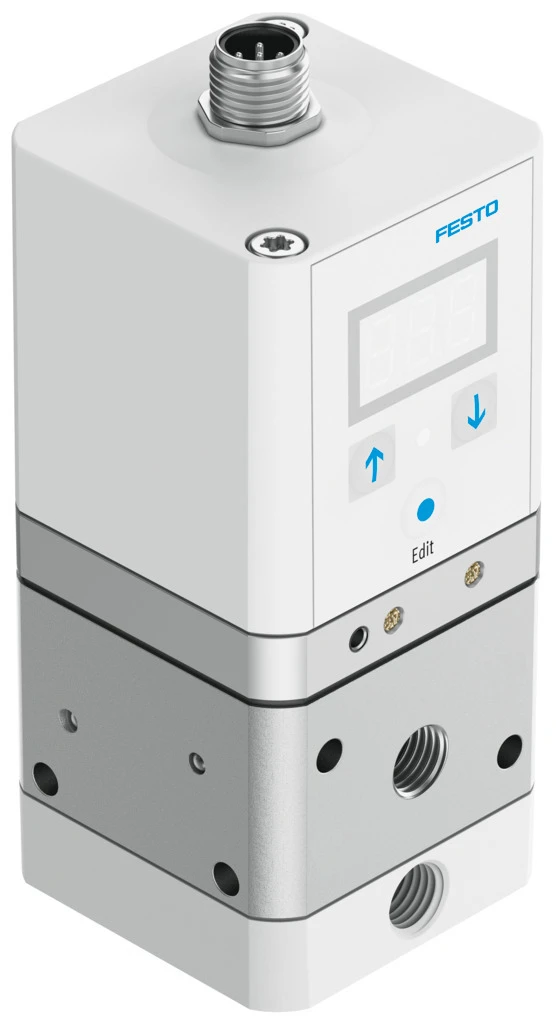

Proportional-pressure regulator, VPPE-3-1-1/8-6-010-E1T

Specifications • Proportional-pressure regulators VPPE • Nominal size, supply 5 mm • Nominal size, exhaust 2.5 mm • Type of actuation Electric • Sealing principle Soft • Mounting position optional, Preferably vertical • Design Piloted diaphragm regulator • Short circuit current rating For all electrical connections • Safety instructions Safety position VPPE: if the power supply cable is interrupted, output pressure is maintained unregulated. • Symbol 00995303 • Reverse polarity protection For all electrical connections • Type of reset Mechanical spring • Type of piloting Pilot actuated • Valve function 3-way proportional pressure regulator • Pneumatic connection, port 1 G1/8 • Pressure regulation range 0.06 bar - 6 bar • Inlet pressure 1 6 bar - 8 bar • Standard nominal flow rate (standardised to DIN 1343) 800 l/min
