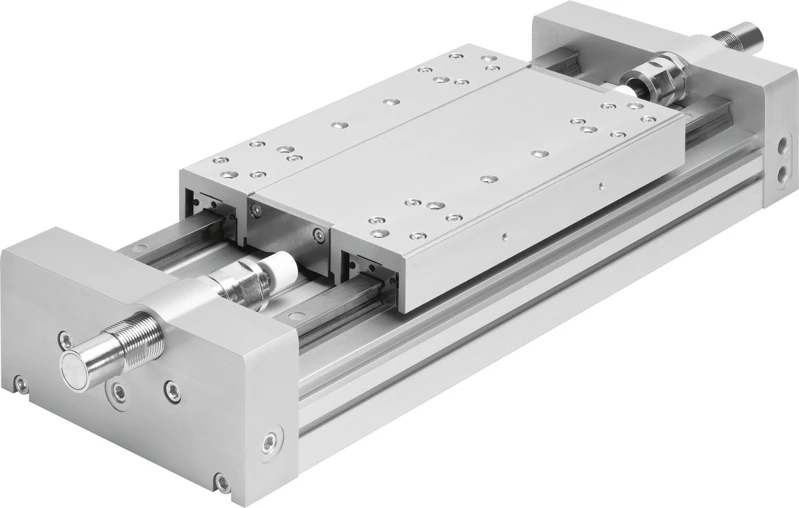

Linear drive, DGC-18- -HD-

Specifications • Linear drives DGC-HD, with heavy-duty guide • Stroke 1 mm ... 3000 mm • Piston diameter 18 mm • Cushioning Shock absorber, hard characteristic curve, Shock absorber, soft characteristic curve • Mounting position optional • Guide Recirculating ball bearing guide • Position detection Via proximity switch • Variants Additional slide, standard, on left, Additional slide, standard, on right • Operating pressure 0.25 MPa ... 0.8 MPa • Operating pressure 2.5 bar ... 8 bar • Mode of operation Double-acting
