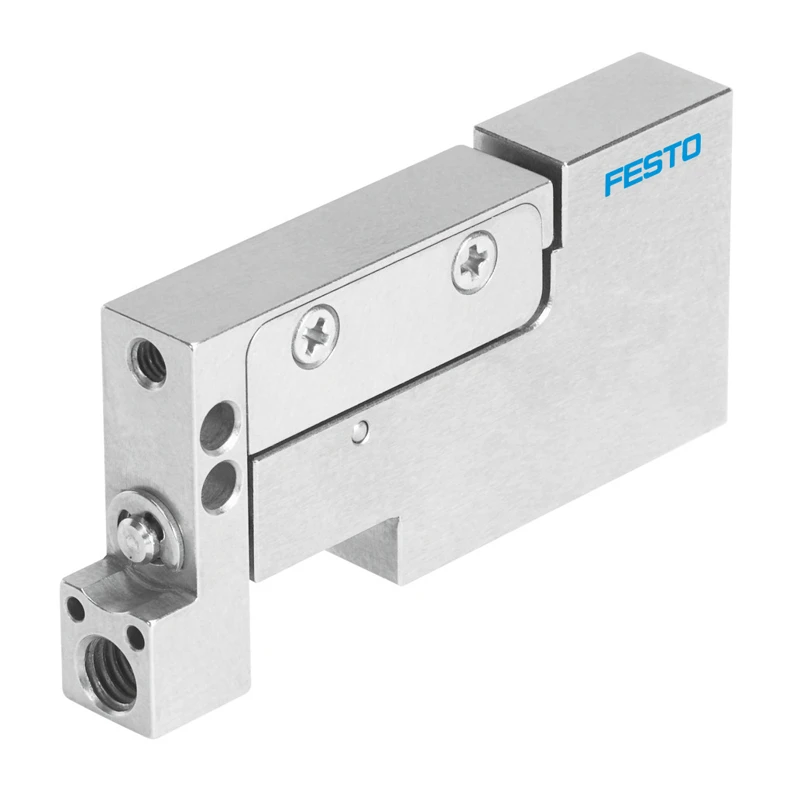

Mini slide, DGSC-6-10-P-P
SKU: 569792
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Mini slides DGSC
• Stroke 10 mm
• Piston diameter 6 mm
• Operating mode, drive unit Yoke
• Cushioning Elastic cushioning rings/plates at both ends
• Mounting position optional
• Guide Ball bearing cage guide
• Design Scotch yoke system
• Position detection Without
• Symbol 00991263
• Operating pressure 0.1 MPa ... 0.6 MPa
• Operating pressure 1 bar ... 6 bar
• Operating pressure 14.5 psi ... 87 psi
• Repetition accuracy 0.2 mm
Buy currently uses Select Automation shop pricing and checkout.
Mini slide DGSC
• DGSC, the smallest short-stroke slide unit in the range with precise ball bearing cage guide for extremely smooth movements or high packing densities.
• Smallest guided slide unit on the market
• Precision ball bearing cage guide for a reliable and high-quality process
• Long service life thanks to housing made from high-alloy steel
• Low break-away pressure and uniform movement thanks to minimal friction of guide and seal
