Valve terminal, MPAL-VI
SKU: 569926
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Valve terminal
• Electrical control Fieldbus, I-Port, IO-Link®, Multi-pin plug
• Electrical I/O system yes
• Terminal type 34
• Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required)
• Media temperature -5 °C ... 50 °C
• Ambient temperature -5 °C ... 50 °C
• Storage temperature -20 °C ... 40 °C
• Degree of protection IP65, IP67
• Corrosion resistance class CRC 3 - high corrosion stress
Buy currently uses Select Automation shop pricing and checkout.

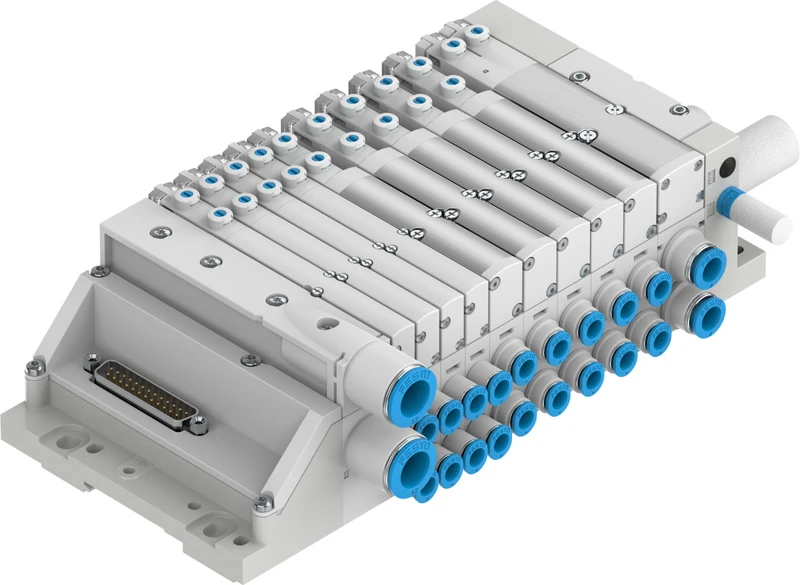

Valve terminal MPA-L
• Valve terminal with sub-base in polymer technology.
• Maximum modularity
• System can be extended as required with individual sub-bases and modular tie rods
• Polymer sub-bases
• 3 valve sizes
• Tamper-proof fixed flow restrictor
• Fieldbus interface via CPX
• IO-Link® capable
