      ISO cylinder, DSBF-C-...-63- -

      SKU: 570080

      Out of stock

      Availability: Out of Stock

      Short Description
      Specifications • Standards-based cylinder DSBF-C, to ISO 15552, clean design • Stroke 1 mm ... 2800 mm • Piston diameter 63 mm • Piston rod thread M16x1.5, M10 • Based on standard ISO 15552 • Cushioning Elastic cushioning rings/plates at both ends, Self-adjusting pneumatic end-position cushioning, Pneumatic cushioning, adjustable at both ends • Mounting position optional • Variants: For unlubricated operation, Increased chemical resistance, Hard scraper, Extended male piston rod thread, Piston rod with female thread, Extended piston rod, Uniform, slow movement, Low friction, Through piston rod, Heat-resistant seals max. 120°C, Temperature range 0 to 150°C, Temperature range -40 to 80°C

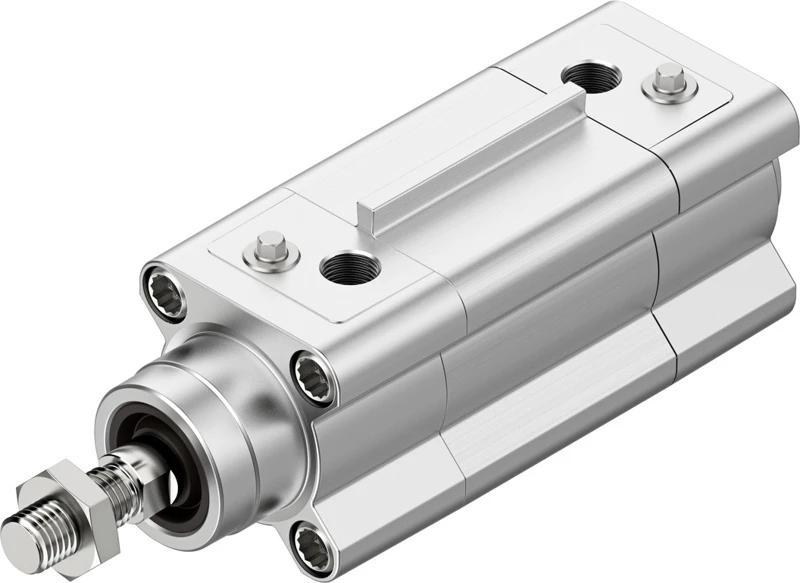

      570080
      Alternative image 1
      Standards-based cylinder DSBF-C, to ISO 15552, clean design • Standards-based cylinders to ISO15552 (corresponds to the withdrawn standards ISO 6431, DIN ISO 6431, VDMA24562, NFE49003.1 and UNI 10290) • The standards-based cylinder is used wherever hygiene, ease of cleaning and resistance are important, predominantly in dry and splash zones in the food and packaging industry. • For hygiene reasons, the threads on the cylinder caps should be sealed with suitable plug screws • Resistant to conventional cleaning agents • Increased corrosion protection • Three types of cushioning available: Elastic cushioning: elastic cushioning rings/plates at both ends, PPS cushioning: pneumatic cushioning, self-adjusting at both ends, PPV cushioning: pneumatic cushioning, adjustable at both ends • The variants can be configured according to individual needs using a modular product system • Excellent flexibility thanks to a wide range of variants • Comprehensive range of mounting accessories for just about every type of installation • Contactless position sensing via proximity switches
