Toothed belt axis, ELGA-TB-G-70- -
SKU: 570502
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Toothed belt axes ELGA-TB-G, with plain-bearing guide
• See datasheet for available configurations
• Effective diameter of drive pinion 28.65 mm
• Working stroke 50 mm ... 8500 mm
• Size 70
• Toothed-belt pitch 3 mm
• Mounting position optional
• Guide Plain-bearing guide
• Design Electromechanical linear axis, With toothed belt
• Type of motor Stepper motor, Servo motor
• Symbol 00991212
• Max. acceleration 50 m/s²
• Max. speed 5 m/s
• Repetition accuracy ±0.08 mm
• Max. feed force Fx 350 N
Buy currently uses Select Automation shop pricing and checkout.

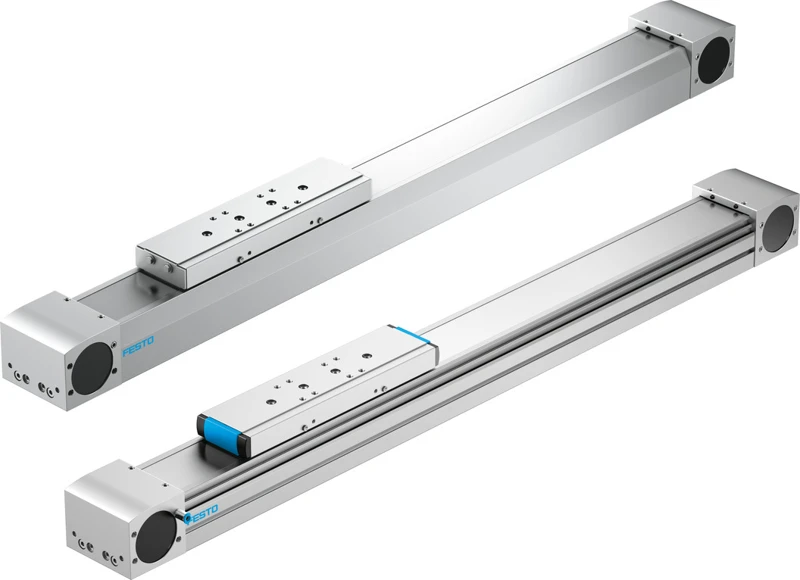

Toothed belt axis ELGA-TB-G
• As a sturdy and very fast toothed belt axis, the ELGA-TB will master your tasks effortlessly.
• Its internal guides (recirculating ball bearing, roller and plain-bearing guides) and sturdy cover strip make it the perfect choice to handle even the toughest of applications.
• Integrated plain-bearing guide
• For small and medium loads
• Low guide backlash
• Drive component for external guides
• Speeds up to 5 m/s with high acceleration up to 50 m/s²
• Flexible motor mounting
• Motor can be mounted on 4 sides
