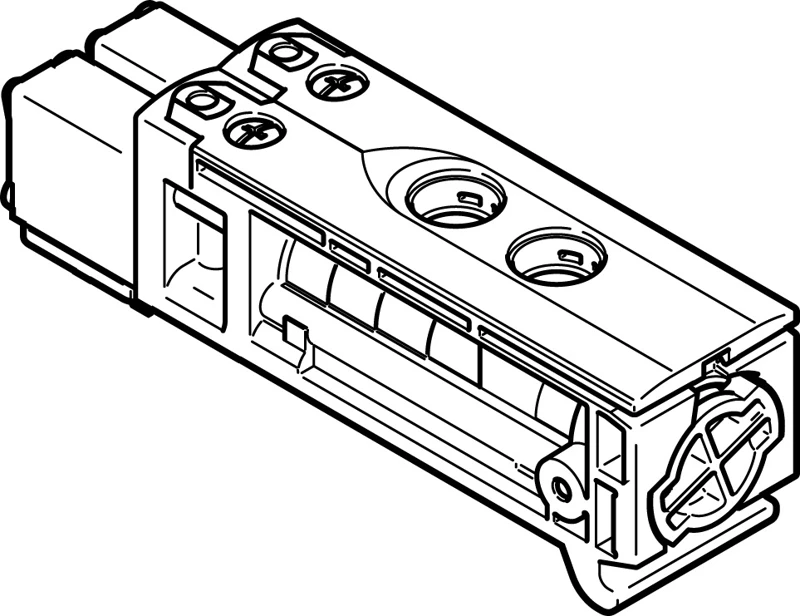

Solenoid valve, VUVB-ST12-B52-ZD-QX-1T1
SKU: 570910
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Valve terminals VTUB-12
• Accessories, Solenoid valve
• Valve function 5/2 double solenoid
• Type of actuation Electric
• Valve size 24 mm
• Standard nominal flow rate (standardised to DIN 1343) 260 l/min ... 450 l/min
• Pneumatic working port QS-4, QS-6
• Operating pressure 0.28 MPa ... 0.8 MPa
• Operating pressure 2.8 bar ... 8 bar
• Design Poppet valve with self-holding function
• Degree of protection IP65
Buy currently uses Select Automation shop pricing and checkout.
Specifications
• Valve terminals VTUB-12
• Accessories, Solenoid valve
• Valve function 5/2 double solenoid
• Type of actuation Electric
• Valve size 24 mm
• Standard nominal flow rate (standardised to DIN 1343) 260 l/min ... 450 l/min
• Pneumatic working port QS-4, QS-6
• Operating pressure 0.28 MPa ... 0.8 MPa
• Operating pressure 2.8 bar ... 8 bar
• Design Poppet valve with self-holding function
• Degree of protection IP65
