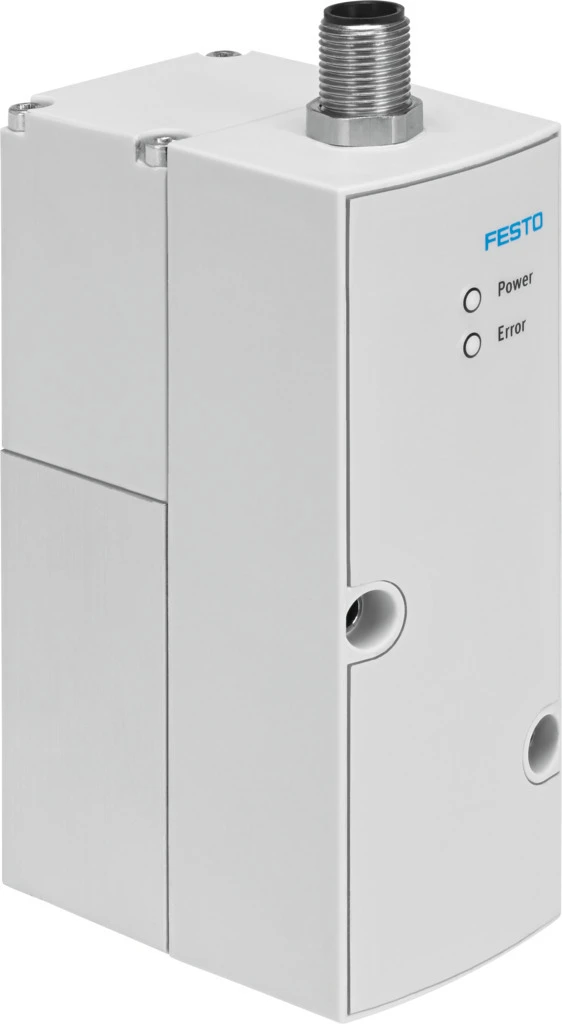

Proportional-pressure regulator, VPPX-6F-L-1-F-0L10H-S1
SKU: 570968
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Proportional-pressure regulators VPPX
• Nominal size, supply 6 mm
• Nominal size, exhaust 4.5 mm
• Type of actuation Electric
• Sealing principle Soft
• Mounting position optional
• Design Piloted diaphragm regulator
• Short circuit current rating For all electrical connections
• Symbol 00995303
• Reverse polarity protection For all electrical connections
• Type of reset Mechanical spring
• Type of piloting Pilot actuated
• Valve function 3-way proportional pressure regulator
• Pneumatic connection, port 1 Sub-base
• Pressure regulation range 0.1 bar - 10 bar
• Standard nominal flow rate (standardised to DIN 1343) 1400 l/min
Buy currently uses Select Automation shop pricing and checkout.
Proportional pressure regulator VPPX
• The proportional valve VPPX from the valve series VPPM.
• With the freely configurable PID controller and the external sensor input, even customer-specific tasks can be easily realised.
• All in all, maximum flexibility and optimal process quality.
• Pressure regulator with additional sensor input
• Programmable, freely adjustable PID controller
• Multi-sensor control (cascade control)
• Control characteristic adjustable via software FCT (Festo Configuration Tool)
• Integrated pressure sensor with separate output
• Pressure is maintained if the controller fails
