Toothed belt axis, ELGG-TB-...-45- -
SKU: 571059
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Toothed belt axes ELGG
• See datasheet for available configurations
• Effective diameter of drive pinion 24.83 mm
• Working stroke 50 mm ... 900 mm
• Size 45
• Toothed-belt stretch 0.08 %
• Toothed-belt pitch 3 mm
• Mounting position optional
• Guide Plain-bearing guide, Recirculating ball bearing guide
• Design Electromechanical linear axis, With toothed belt
• Type of motor Stepper motor, Servo motor
• Max. acceleration 50 m/s²
• Max. speed 1 m/s ... 3 m/s
• Repetition accuracy ±0.1 mm
• Duty cycle 100%
• LABS (PWIS) conformity VDMA24364 zone III
Buy currently uses Select Automation shop pricing and checkout.

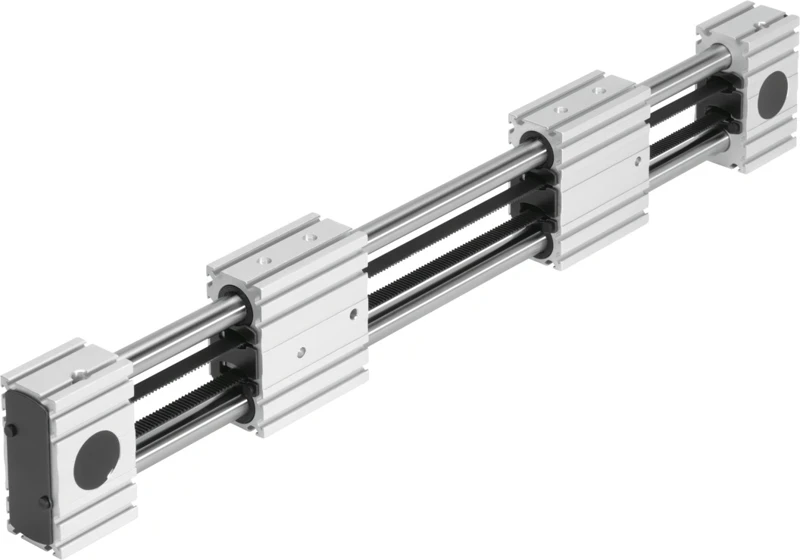

Toothed belt axis ELGG
• The toothed belt axis ELGG with two synchronised opposing slides is ideal for long centring strokes in the packaging industry, as a gripper with strokes of up to 300 mm per side, or as a drive for door movements.
• Toothed belt axis with two opposing slides
• With low-cost plain bearing and precise ball bearing guide
• Optional central support improves the rigidity
• Motor can be mounted on 4 sides
