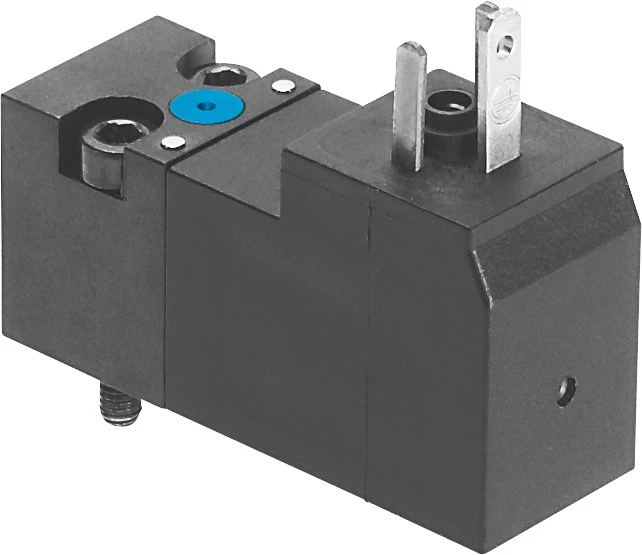

Solenoid valve, VSCS-B-M32-MD-WA-1C1
SKU: 571061
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Standards-based valve VSCS
• Valve function 3/2-way, closed, monostable
• Type of actuation Electric
• Construction width 15 mm
• Standard nominal flow rate (standardised to DIN 1343) 18 l/min
• Pneumatic working port Sub-base size 15 mm to ISO 15218
• Operating voltage 24V DC
• Operating pressure 0 MPa ... 1 MPa
• Operating pressure 0 bar ... 10 bar
• Operating pressure 0 psi ... 145 psi
• Type of reset Mechanical spring
Buy currently uses Select Automation shop pricing and checkout.
Standards-based valve VSCS
• Standards-based valves ISO 15218 (CNOMO).
• Valve actuator for electrical actuation of valve bodies
• CNOMO connection pattern, to ISO 15218
• Detenting or non-detenting manual override
