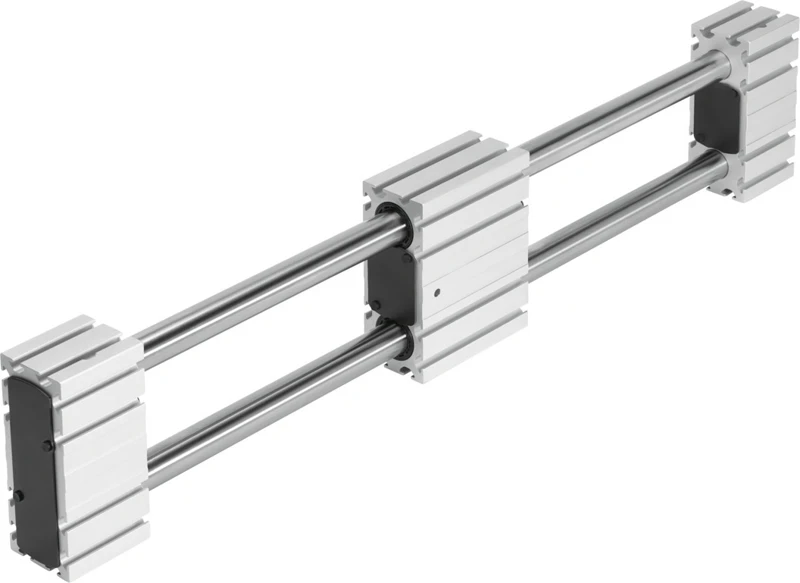

Guide axis, ELFR-...-55- -
SKU: 571437
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Guide axes ELFR, without drive
• Working stroke 50 mm ... 1500 mm
• Size 55
• Mounting position optional
• Guide Plain-bearing guide, Recirculating ball bearing guide
• Design Passive guide axis
• Symbol 00992984
• Max. acceleration 50 m/s²
• Max. speed 1 m/s ... 3 m/s
• Corrosion resistance class CRC 0 - No corrosion stress
• LABS (PWIS) conformity VDMA24364 zone III
• Degree of protection IP20
• Ambient temperature -10 °C ... 50 °C
Buy currently uses Select Automation shop pricing and checkout.
Guide axis ELFR
• Non-drive guide axis suitable for the ELGR family, which supports forces and moments in multi-axis applications with load-bearing recirculating ball bearing guide or plain bearing guide.
• For toothed belt axes ELGR (drive axes)
• For spindle/toothed belt axes ELGA (drive axes)
• For supporting forces and torques in multi-axis applications
• High torsional resistance
