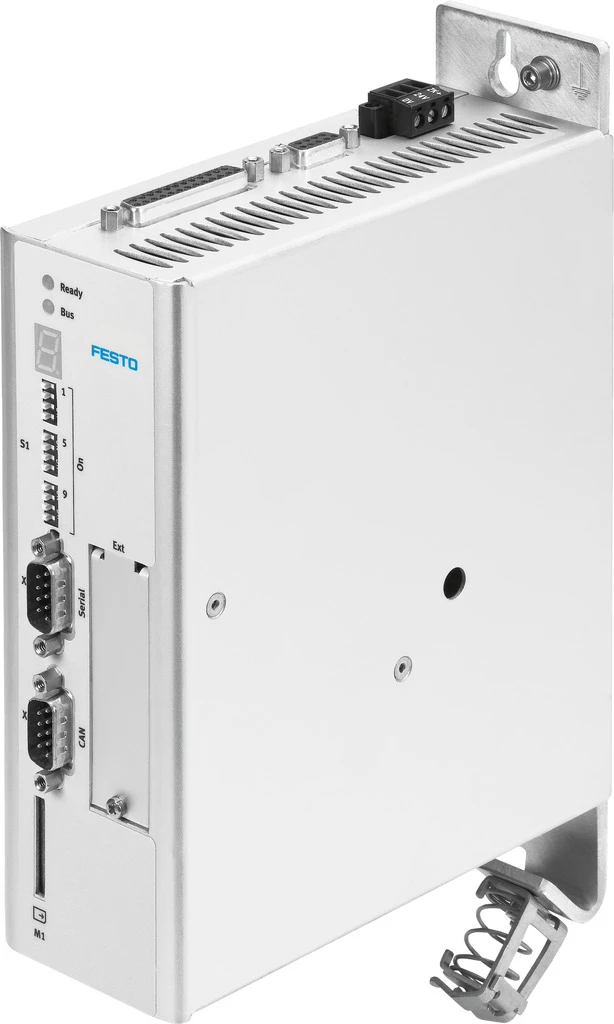

Motor controller, CMMS-ST-C8-7-G2
SKU: 572211
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Motor controllers CMMS-ST, for stepper motors
• Type of mounting On sub-base, Screw-clamped
• Product weight 2000 g
• Display 7-segment display
• Operator controls DIP switch
• Approval BIA, C-Tick, c UL us listed (OL)
• Nominal current, load supply 8 A
• Max. step frequency 4 kHz
• Controller operating mode PWM MOSFET power output stage
• Fieldbus link CANopen - Profibus DP
Buy currently uses Select Automation shop pricing and checkout.
Motor controllers CMMS-ST, for stepper motors
• Can be operated as a torque, rotational speed or position controller
• Integrated positioning control
• Time-optimised (trapezoidal) or jerk-free (S-shaped) positioning
• Absolute and relative movements
• Point-to-point positioning with and without motion path smoothing
• Position synchronisation
• Electronic gear unit
• 63 position sets
• 8 positioning profiles
• Wide range of homing methods
