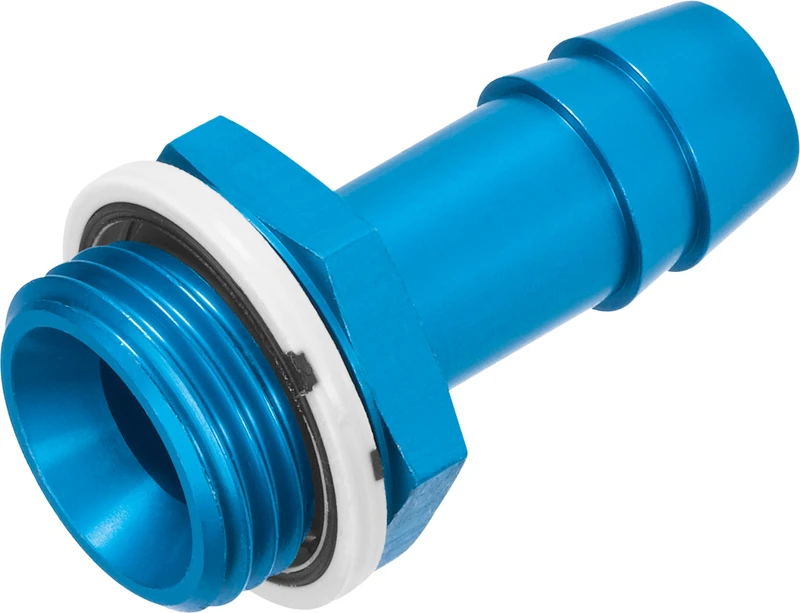

Barbed hose fitting, N-1-P-19-NPT
SKU: 572243
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Valve terminal VTSA/VTSA-F, NPT
• Accessories, Barbed hose fitting
• Pneumatic connection, port 1 Male thread 1 NPT
• Pneumatic connection, port 2 For tubing I.D. 19 mm
• Nominal size 16.5 mm
• Type of seal on screwed plug Coating
• Mounting position optional
• Design Straight design
• Size of pack 1
• Operating pressure complete temperature range -0.95 bar ... 16 bar
• Operating medium Compressed air to ISO 8573-1:2010 [7:-:-]
Buy currently uses Select Automation shop pricing and checkout.
Barbed hose fitting C-P, N-P
• Barbed hose fitting with or without sealing ring
• Tubing clip to DIN 3017
• Operating medium: compressed air, vacuum
• Brass or aluminium, steel
