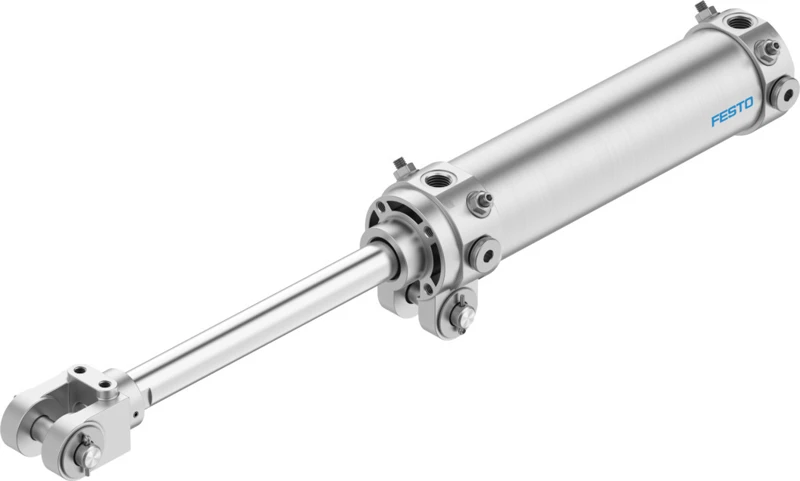

Hinge cylinder, DWC-50-150-Y-G

Specifications • Hinge cylinders DW, With G thread • Stroke 150 mm • Piston diameter 50 mm • Piston rod thread M16x1.5 • Broad rod clevis/swivel mounting 16.5 mm • Cushioning Pneumatic cushioning, adjustable at both ends • Mounting position optional • Design Piston, Piston rod with rod clevis, Swivel mounting on bearing cap, Cylinder barrel • Speed regulation Integrated flow control at both ends • Position detection Without • Piston-rod end Male thread with rod clevis • Pneumatic connection G1/4 • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 1178 N • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke 990 N
