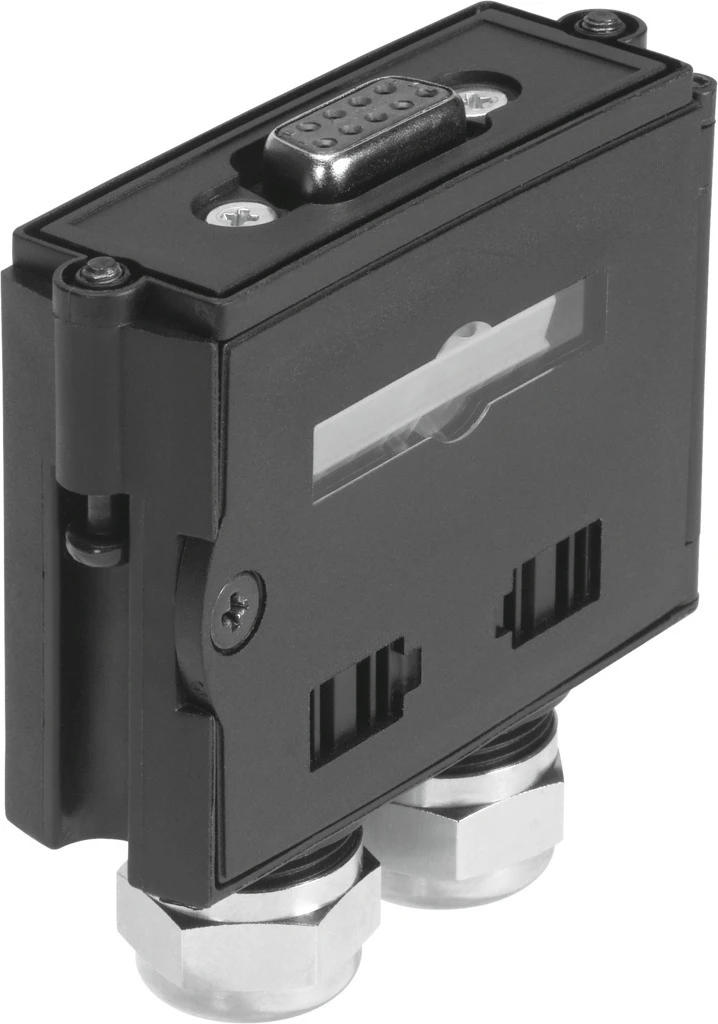

Multi-pin plug socket, NECA-S1G9-P9-MP5

Specifications • Soft-start/quick exhaust valves MS-SV, MS series • Accessories, Multi-pin plug socket NECA for soft-start/quick exhaust valve MS6N-SV-E-10V24 • Type of mounting With through-hole • Product weight 60 g • Electrical connection 1 Socket, sub-D, 9-pin • Electrical connection 2 Screw terminal, 9-pin • Operational voltage range DC 21.6 V ... 26.4 V • Nominal operating voltage DC 24 V • Current rating at 40° C 1 A • Permissible cable diameter 5 mm ... 10 mm • Connection cross section 0.34 mm² ... 1 mm² • Electrical connection 1 Socket, sub-D, 9-pin • Electrical connection 2 Screw terminal, 9-pin • Degree of protection IP65 - To IEC 60529
