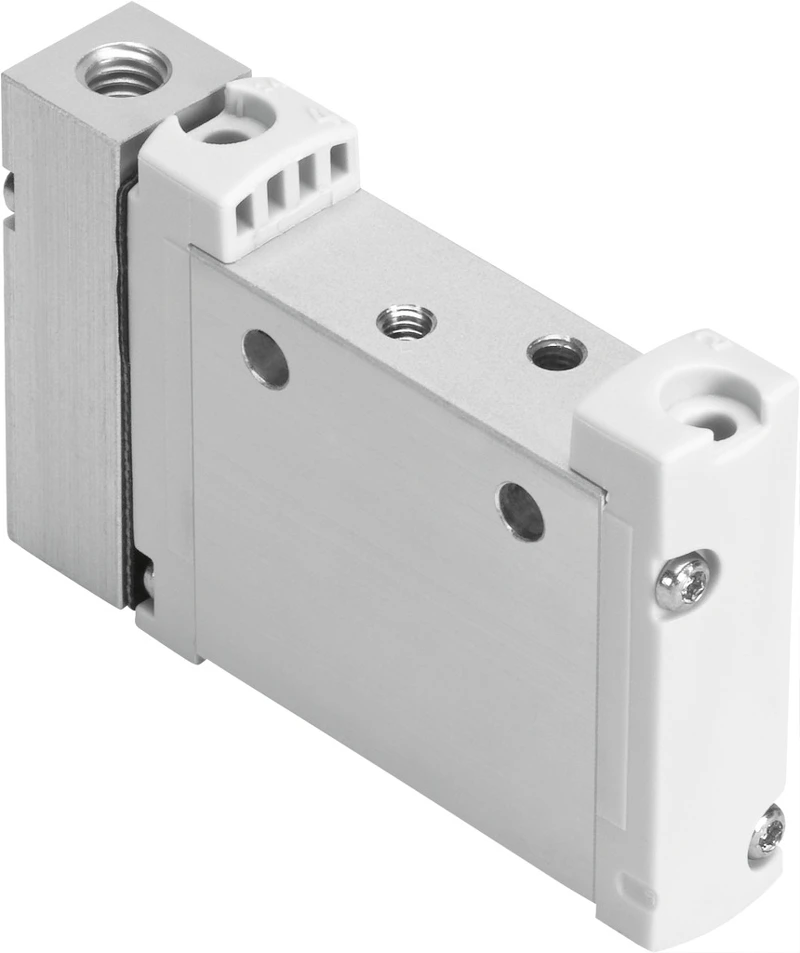

Pneumatic valve, VUWG-L10A-M52-R-M3
SKU: 573795
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Pneumatic valves VUWG-L10A, in-line valves M3
• Valve function 5/2-way, monostable
• Type of actuation Pneumatic
• Valve size 10 mm
• Standard nominal flow rate (standardised to DIN 1343) 100 l/min
• Pneumatic working port M3
• Operating pressure 2.5 bar ... 10 bar
• Design Piston gate valve
• Type of reset Mechanical spring, Pneumatic spring
• Grid dimension 10.5 mm
• Exhaust-air function With flow control option
Buy currently uses Select Automation shop pricing and checkout.
Pneumatic valve VUWG
• Compact pneumatic valve with high flow rates.
• Compact universal valve
• Pneumatically actuated
• High flow rate relative to its size
• In-line valves can be used as individual valves or manifold valves
• Can be combined on manifold rail with electric individual valves
