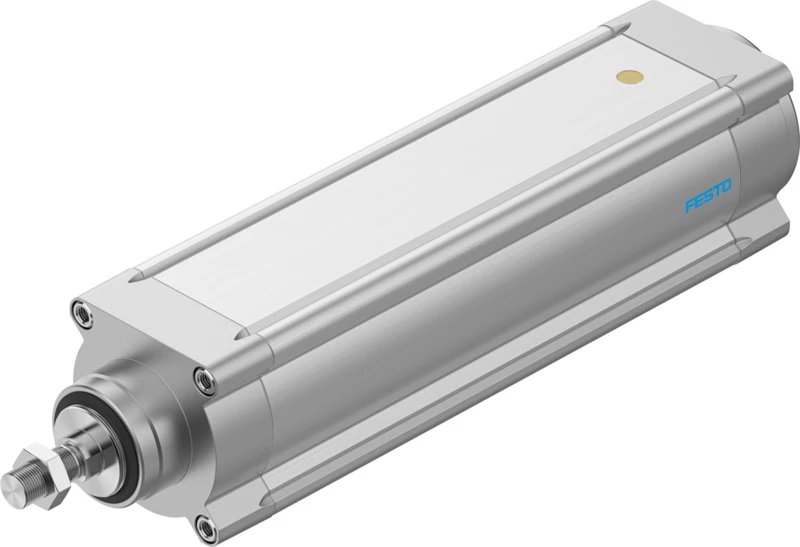

Electric drive, ESBF-BS-100-200-40P
SKU: 574123
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Electric cylinders ESBF, with spindle drive
• Size 100
• Stroke 200 mm
• Piston rod thread M20x1.5
• Reversing backlash theoretical 40 µm
• Spindle diameter 40 mm
• Spindle pitch 40 mm/U
• Torsional backlash at piston rod +/- 0.5 deg
• Based on standard ISO 15552
• Mounting position optional
• Piston-rod end Male thread
• Type of motor Servo motor
• Position detection Via proximity switch
• Design Electric cylinder with ball screw
• Spindle type Ball screw
• Max. feed force Fx 14500 N
• Repetition accuracy ±0.01 mm
Buy currently uses Select Automation shop pricing and checkout.
Electric cylinder ESBF
• With a dynamic feed force of up to 17 kN, the extremely powerful electric cylinder ESBF comes into its own wherever heavy-duty and reliable positioning as well as precision and dynamic response are needed.
• Available with ball screw drive (size 32 … 100) or lead screw (size 32 … 50)
• Ball screw: with three spindle pitches for selecting the optimal force-speed ratio
• Optional: high corrosion protection, degree of protection IP65, food-safe (see www.festo.com/certificates/ESBF), piston rod extension
• Axial or parallel motor mounting
• 68 types in stock with short delivery times and modular products for custom variants
• Variants recommended for production systems for manufacturing lithium-ion batteries
