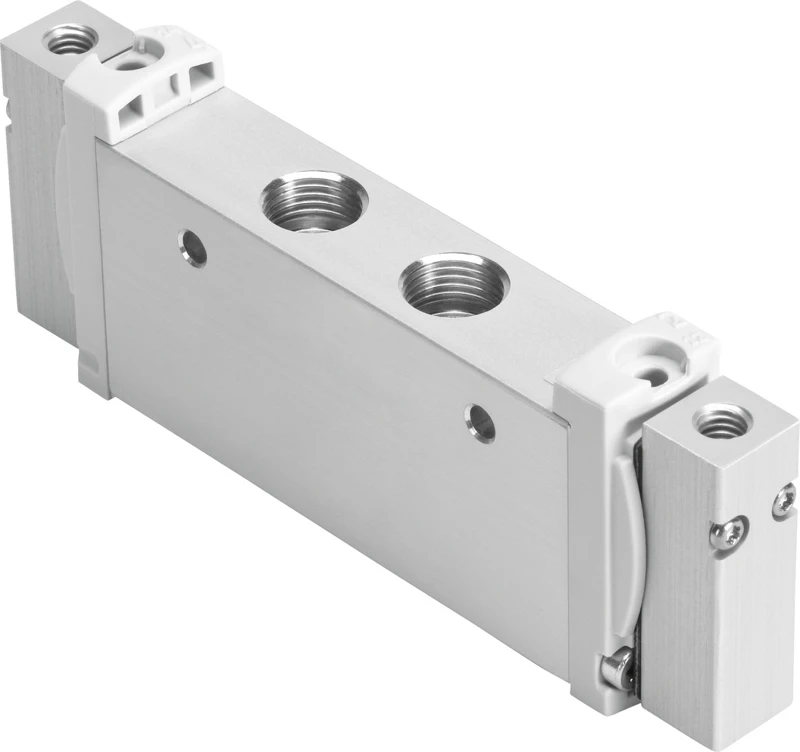

Pneumatic valve, VUWG-L18-T32C-M-G14
SKU: 574266
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Pneumatic valves VUWG-L18 and VUWG-S18, in-line valves G1/4
• Valve function 2x3/2-way, monostable, closed
• Type of actuation Pneumatic
• Valve size 18 mm
• Standard nominal flow rate (standardised to DIN 1343) 1000 l/min
• Pneumatic working port G1/4
• Operating pressure -0.9 bar ... 10 bar
• Design Piston gate valve
• Type of reset Mechanical spring
• Grid dimension 19 mm
• Exhaust-air function With flow control option
Buy currently uses Select Automation shop pricing and checkout.
Pneumatic valve VUWG
• Compact pneumatic valve with high flow rates.
• Compact universal valve
• Pneumatically actuated
• High flow rate relative to its size
• In-line valves can be used as individual valves or manifold valves
• Can be combined on manifold rail with electric individual valves
