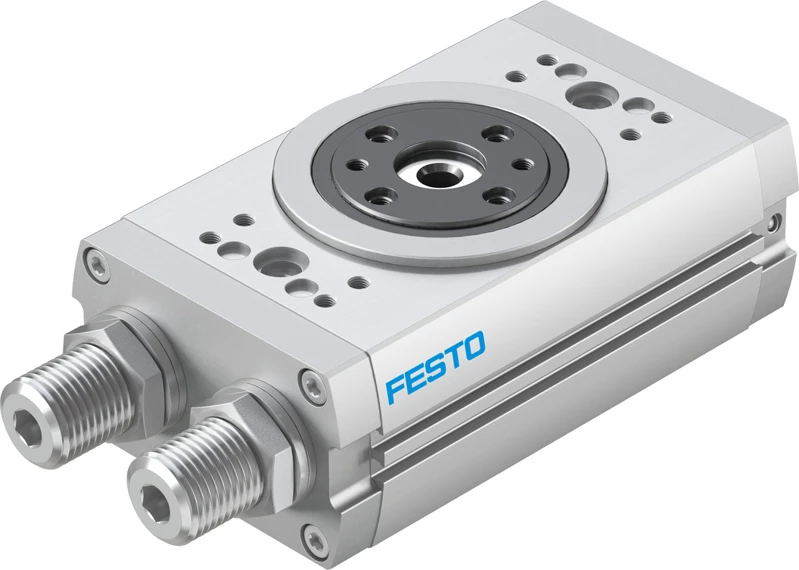

Semi-rotary drive, DRRD-35-
SKU: 574403
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Semi-rotary drives DRRD, twin pistons
• Size 35
• Swivel angle 180 deg
• Cushioning Elastic cushioning rings/plates at both ends, Internal hydraulic cushioning hard, External hydraulic cushioning, Internal hydraulic cushioning, soft, Internal hydraulic cushioning normal
• Mounting position optional
• Design Rack and pinion
• Max. number of intermediate positions 1
• Position detection Via proximity switch
• Symbol 00991265
• Operating pressure 0.2 MPa ... 1 MPa
• Operating pressure 2 bar ... 10 bar
Buy currently uses Select Automation shop pricing and checkout.
Semi-rotary drives DRRD, twin pistons
• Rack and pinion principle
• Very high accuracy in the end positions
• Very high load bearing capacity
• Very good axial run-out at the flange shaft
• High mass moments of inertia
• Low backlash and good dynamic response
• Splash-proof design to IP65 based on EN 60529
• Defined interfaces
• Supply port at one end
• Choice of mounting options
• Ideal for use in handling applications
