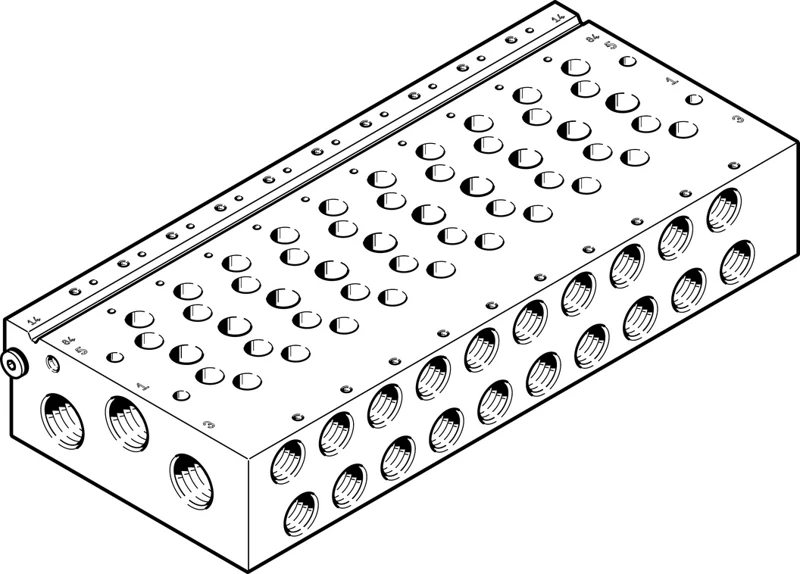

Solenoid valves, Accessories, VABM-L1-18W-G38-8
SKU: 574473
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Solenoid valves VUVG
• Accessories, Manifold rail
• Grid dimension 19 mm
• Max. number of valve positions 16
• Operating pressure -0.09 MPa ... 1 MPa
• Operating pressure -0.9 bar ... 10 bar
• Approval RCM trademark, c UL us - Recognized (OL)
• Corrosion resistance class CRC 2 - Moderate corrosion stress
• LABS (PWIS) conformity VDMA24364-B1/B2-L
Buy currently uses Select Automation shop pricing and checkout.
Solenoid valves VUVG
• Connection technology via electrical connection box (E-box)
• Specific I-Port interface from Festo for fieldbus node
• IO-Link® mode for direct connection to a higher-level IO-Link® master
• Festo-specific I-Port interface with interlock
• Variable multi-pin plug connection using Sub-D or flat cable
• Sturdy and durable metal components
• Reversible piston spool valves
• Up to 24 valve positions
