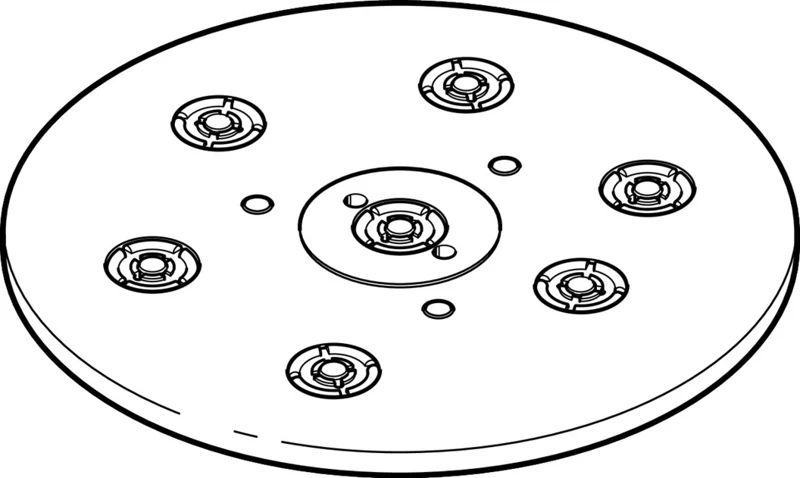

Bernoulli-gripper, OGGB-140-G18-2-Q

Specifications • Bernoulli grippers OGGB • Mounting position optional • Position of connection On top/at side • Symbol 00995229 • Gripper diameter 140 mm • Operating pressure 0 bar ... 6 bar • Nominal operating pressure 1 bar • Air consumption at nominal operating pressure 110 l/min • Operating medium Compressed air to ISO 8573-1:2010 [7:4:4] • Note on operating and pilot medium Lubricated operation not possible • LABS (PWIS) conformity VDMA24364-B2-L • Corrosion resistance class CRC 2 - Moderate corrosion stress • Media temperature 0 °C ... 60 °C • Ambient temperature 0 °C ... 60 °C • Sound pressure level at nominal operating pressure 65 dB(A) • Sound level at nominal operating pressure 78 dB(A) • Holding force at nominal operating pressure 6 N
