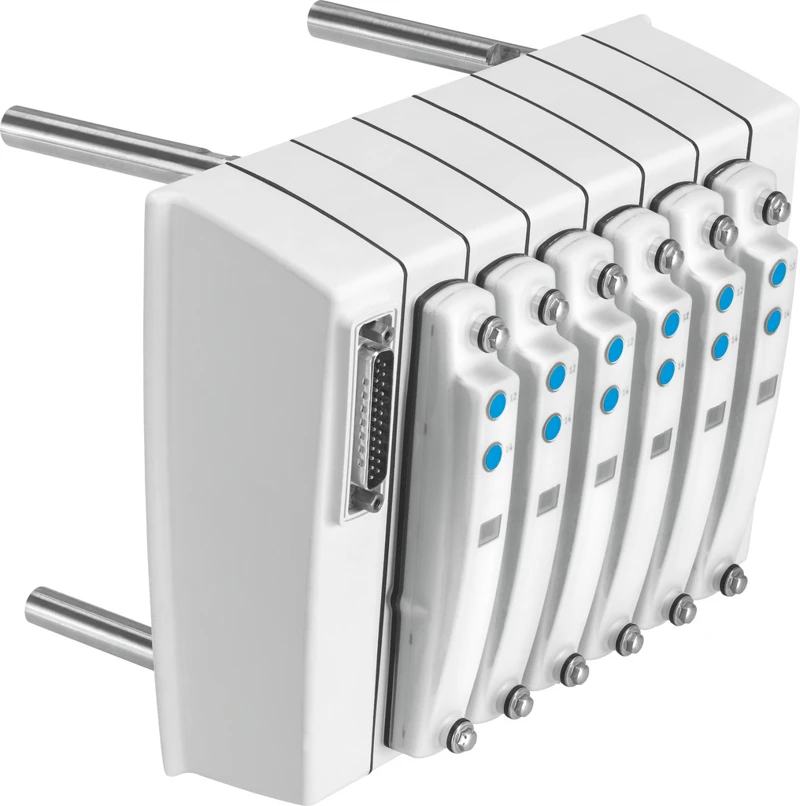

Valve terminal, MPAC-VI
SKU: 575465
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Valve terminal MPA-C
• See datasheet for available configurations
• Electrical control I-Port, IO-Link®, Multi-pin plug
• Electrical I/O system no
• Terminal type 35
• Grid dimension 26.8 mm
• Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required)
• Media temperature -5 °C ... 50 °C
• Ambient temperature -5 °C ... 60 °C
• Storage temperature -20 °C ... 40 °C
• Degree of protection IP65, IP67, IP69K
• Corrosion resistance class CRC 4 - Very high corrosion stress
Buy currently uses Select Automation shop pricing and checkout.
Valve terminal MPA-C
• The MPA-C can be used in even the most challenging environments as it is easy to clean, corrosion-resistant and has IP69K.
• The materials are FDA-compliant and NSF-H1 grease is included.
• Valve terminal in clean design
• Easy-to-clean design
• High corrosion resistance
• Degree of protection IP69K
• FDA-compliant materials
• Redundant sealing system
