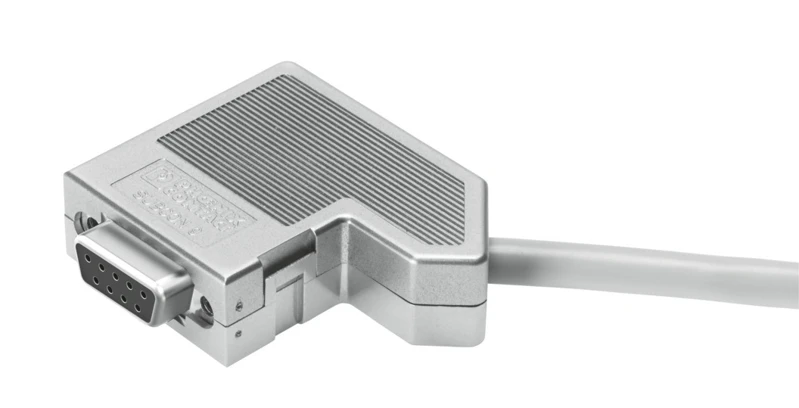

Plug, NECC-S1G9-C2-M

Specifications • Plug NECC • Sub-D plug, 9-pin, with screw terminal, degree of protection IP40 • Height 39.4 mm • Length 58 mm • Product weight 24 g • Field bus interface Sub-D, 9-pin, socket • Electrical connection 9-pin/9-pin, Sub-D/screw terminal • Baud rate 1 Mbps • Permissible cable diameter 8 mm • Permissible cable diameter 8 mm • Degree of protection IP40 • Ambient temperature -20 °C ... 70 °C • CE mark To EU Low Voltage Directive • LABS (PWIS) conformity VDMA24364-B2-L • Note on materials RoHS-compliant • Corrosion resistance class CRC 1 - Low corrosion stress
