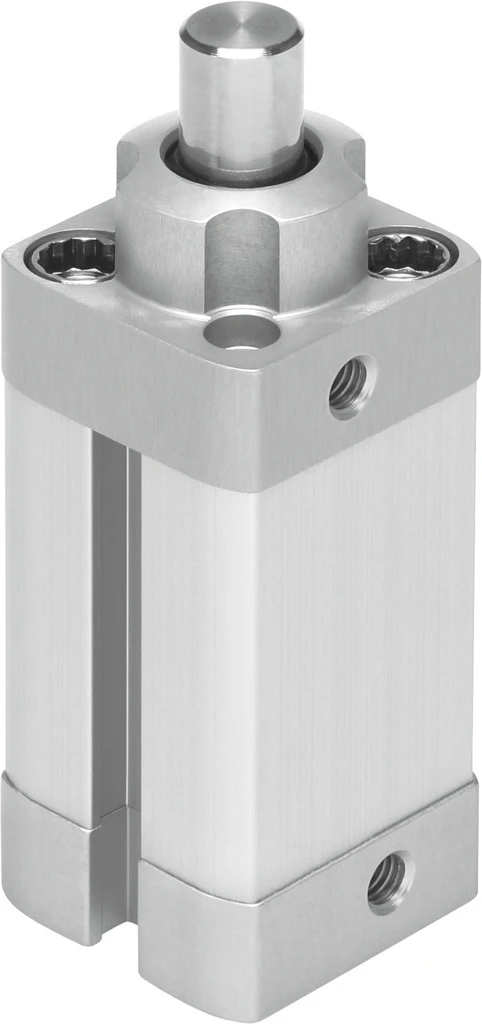

Stopper cylinder, DFSP-20-10-S-PA
SKU: 576072
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Stopper cylinder DFSP
• Stroke 10 mm
• Piston diameter 20 mm
• Cushioning Elastic cushioning rings/plates at both ends
• Mounting position optional
• Mode of operation Double-acting, Pulling
• Design Piston, Piston rod, Profile barrel
• Position detection Via proximity switch
• Symbol 00995272
• Protection against torque/guide Round piston rod
• Operating pressure 0.16 MPa ... 1 MPa
• Operating pressure 1.6 bar ... 10 bar
• Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
• Impact force 1370 N
Buy currently uses Select Automation shop pricing and checkout.
Stopper cylinder DFSP
• Standard stopper cylinder in trunnion or roller design.
• Trunnion version with/without protection against rotation, with/without female thread
• Roller version with protection against rotation
• Compact design
• Sensor slots on 3 sides
• Long service life thanks to very good cushioning characteristics and sturdy piston rod guide
• Safe stopping of workpiece carriers, pallets and packages weighing up to 90 kg
