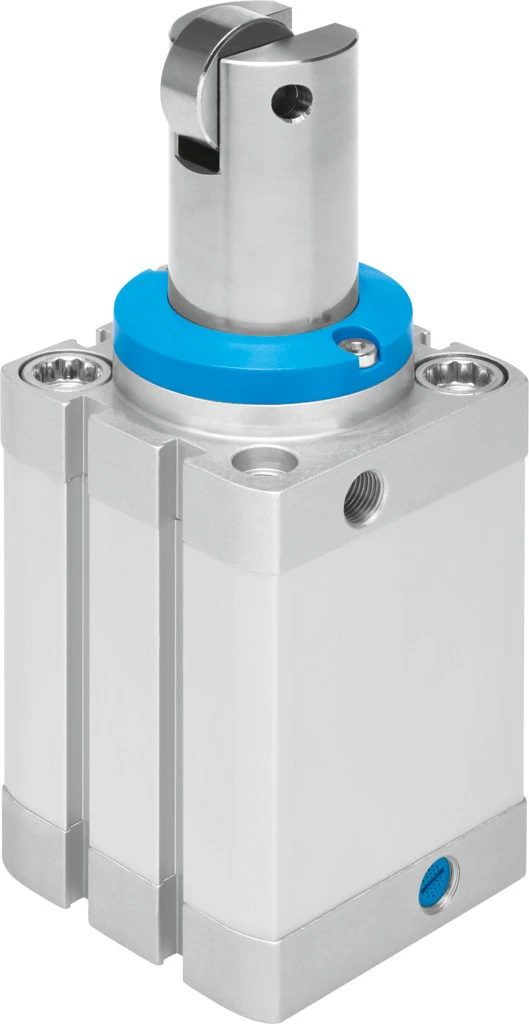

Stopper cylinder, DFSP-Q-50-20-PR-PA
SKU: 576165
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Stopper cylinder DFSP
• Stroke 20 mm
• Piston diameter 50 mm
• Cushioning Elastic cushioning rings/plates at both ends
• Mounting position optional
• Mode of operation Single-acting, Pulling
• Design Piston, Piston rod with roller, Profile barrel, Non-rotating
• Position detection Via proximity switch
• Symbol 00995267
• Variants Non-rotating piston rod
• Impact force 5000 N
Buy currently uses Select Automation shop pricing and checkout.
Stopper cylinder DFSP
• Standard stopper cylinder in trunnion or roller design.
• Trunnion version with/without protection against rotation, with/without female thread
• Roller version with protection against rotation
• Compact design
• Sensor slots on 3 sides
• Long service life thanks to very good cushioning characteristics and sturdy piston rod guide
• Safe stopping of workpiece carriers, pallets and packages weighing up to 90 kg
