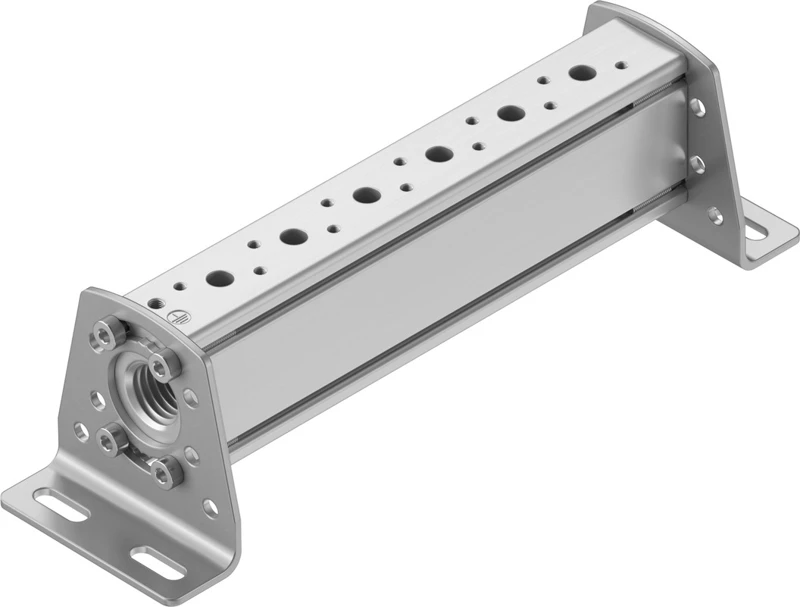

Solenoid valves, Accessories, VABM-B10-20-G38-6-P53
SKU: 576367
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Solenoid valves VUVS
• Accessories, Common supply manifold
• Grid dimension 22 mm
• Mounting position optional
• Max. number of valve positions 6
• Corrosion resistance class CRC 2 - Moderate corrosion stress
• LABS (PWIS) conformity VDMA24364-B1/B2-L
• Product weight 395 g
• Type of mounting Via mounting bracket
• Pneumatic connection, port 1 G3/8
• Note on materials RoHS-compliant
• Material manifold rail Wrought aluminium alloy
Buy currently uses Select Automation shop pricing and checkout.
Solenoid valves VUVS
• Width of valves 20 (21 mm), 25 (26.5 mm), 30 (31 mm), flow rate up to 2300 l/min
• In-line valves can be used as individual valves or manifold valves
• Variable pressure zones
• Universal valve, sturdy and durable
• Low-cost, no limitations with regard to performance
• Can be used as a valve manifold VTUS
