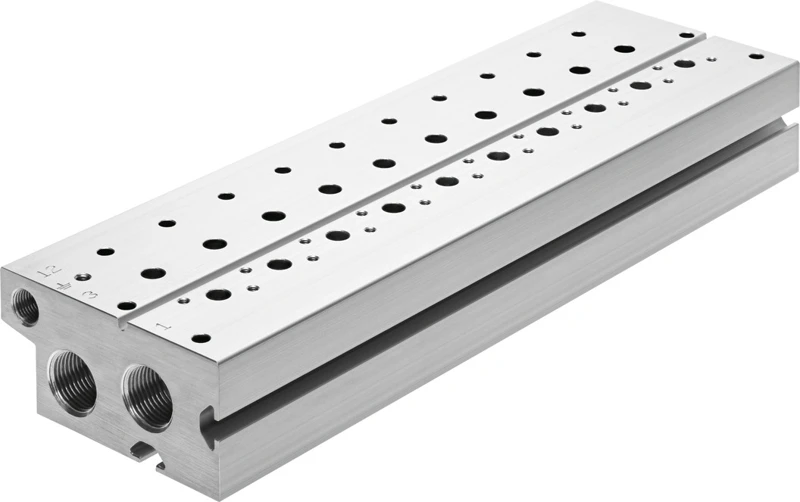

Manifold block, VABM-B10-20E-G38-9-P3

Specifications • Solenoid valves VUVS/Valve manifold assembly VTUS • Manifold block, size 20 • Grid dimension 22 mm • Mounting position optional • Max. number of valve positions 9 • Corrosion resistance class CRC 2 - Moderate corrosion stress • LABS (PWIS) conformity VDMA24364-B1/B2-L • Product weight 1326 g • Type of mounting With through-hole • Pilot air port 12 G1/8 • Pneumatic connection, port 1 G3/8 • Pneumatic connection, port 3 G3/8 • Note on materials RoHS-compliant • Material manifold rail Wrought aluminium alloy
