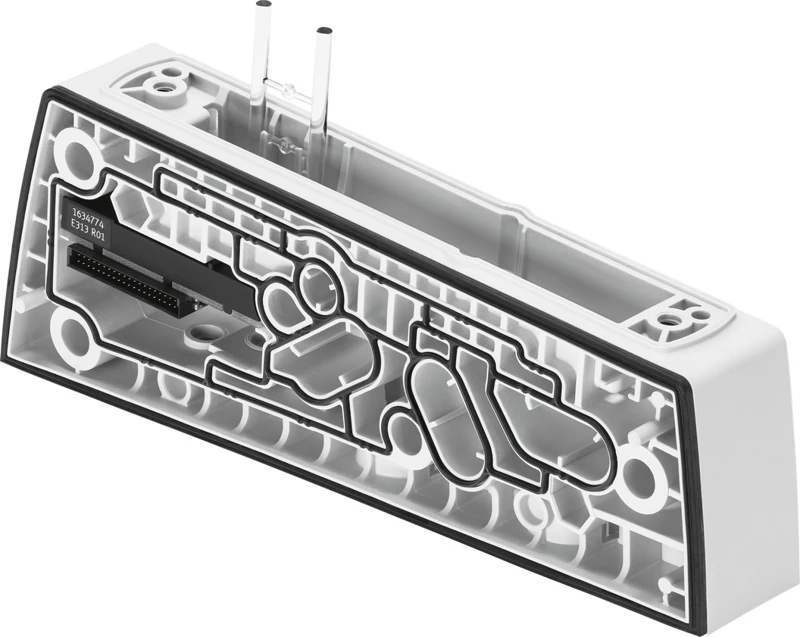

Sub-base, VMPAC-AP-14-B-1

Specifications • Valve terminal MPA-C • Accessories, Sub-base • Width 32.8 mm • Length 169 mm • Grid dimension 26.8 mm • Max. number of valve positions 1 • Operating pressure -0.9 bar ... 8 bar • Pilot pressure 3 bar ... 8 bar • Corrosion resistance class CRC 4 - Very high corrosion stress • LABS (PWIS) conformity VDMA24364-B2-L • Ambient temperature -5 °C ... 50 °C • Product weight 160 g • Pneumatic connection, port 2 G1/4 • Pneumatic connection, port 4 G1/4 • Note on materials RoHS-compliant • Material housing PA-reinforced • Packaging unit 1
