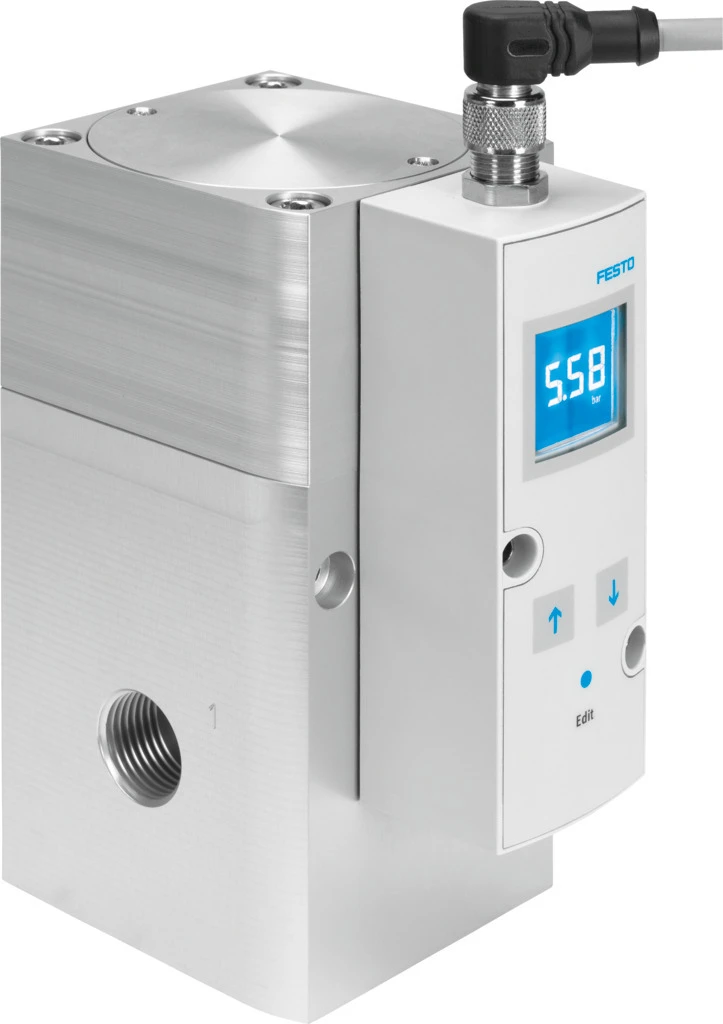

Proportional-pressure regulator, VPPM-12L-L-1-N12-0L10H-A4P-S1C1
SKU: 576683
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Proportional-pressure regulator VPPM-NPT
• Valve function 3-way proportional pressure regulator
• Pneumatic connection, port 1 1/2 NPT
• Pressure regulation range 0.1 bar - 10 bar
• Standard nominal flow rate (standardised to DIN 1343) 7000 l/min
• Nominal size, supply 12 mm
• Nominal size, exhaust 12 mm
• Type of actuation Electric
• Sealing principle Soft
• Mounting position optional
• Design Piloted diaphragm regulator
• Short circuit current rating For all electrical connections
Buy currently uses Select Automation shop pricing and checkout.
Proportional-pressure regulator VPPM-NPT
• The new dimension in the field of proportional-pressure regulators.
• Every application will have the right parameters simply by selecting the matching control characteristics from 3 presets at the push of a button.
• Reliable control is ensured thanks to a two-stage circuit with multi-sensor control.
• Piloted pressure regulator
• Multi-sensor control (cascade control)
• Three default presets for fast commissioning
• Integration in valve terminal MPA
• User interface with LED displays, LCD display, adjustment/selection buttons
• Integrated pressure sensor
• Electrical connection via plug connector, round design, 8-pin, M12 or terminal linking
