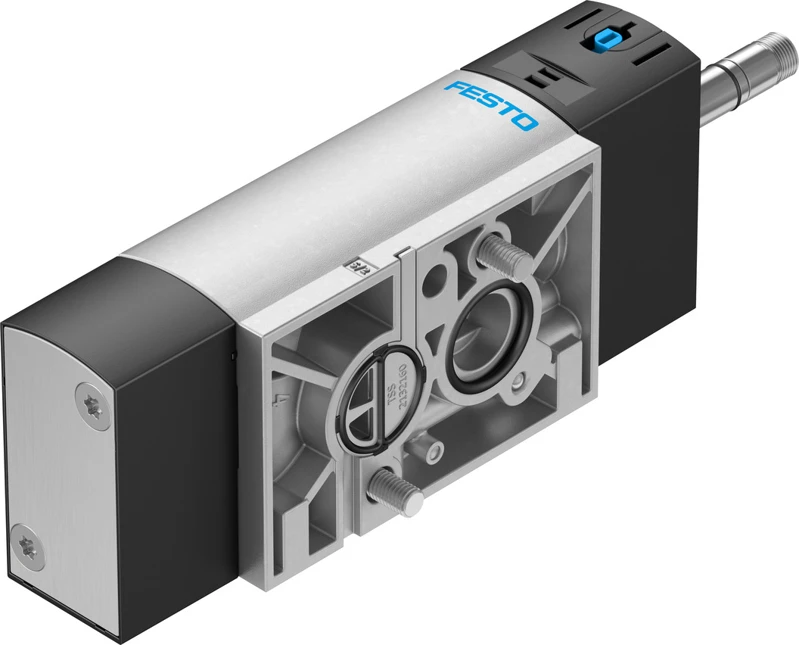

Solenoid valves, VSNC-FC-M52-MD-G14-F8
SKU: 577257
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Solenoid valves VSNC, to NAMUR
• Valve function 5/2-way or 3/2-way, convertible
• Type of actuation Electric
• Construction width 32 mm
• Standard nominal flow rate 1250 l/min
• Pneumatic working port NAMUR port pattern
• Operating voltage Via solenoid coil, must be ordered separately
• Operating pressure 0.25 MPa ... 1 MPa
• Operating pressure 2.5 bar ... 10 bar
• Design Piston gate valve
• Type of reset Mechanical spring
• Approval c UL us - Recognized (OL)
Buy currently uses Select Automation shop pricing and checkout.
Solenoid valves VSNC, to NAMUR
• Connection G1/4
• Flow rate 1250 l/min
• Voltage 12, 24, 48 V DC, 24, 48, 120, 230 V AC
• Namur connection pattern to VDE/VDI 3845
• Solenoid actuated, piloted
• Mechanical spring return
• Can be converted from 5/2- to 3/2-way function
• Selected types in accordance with ATEX directive for potentially explosive atmosphere
