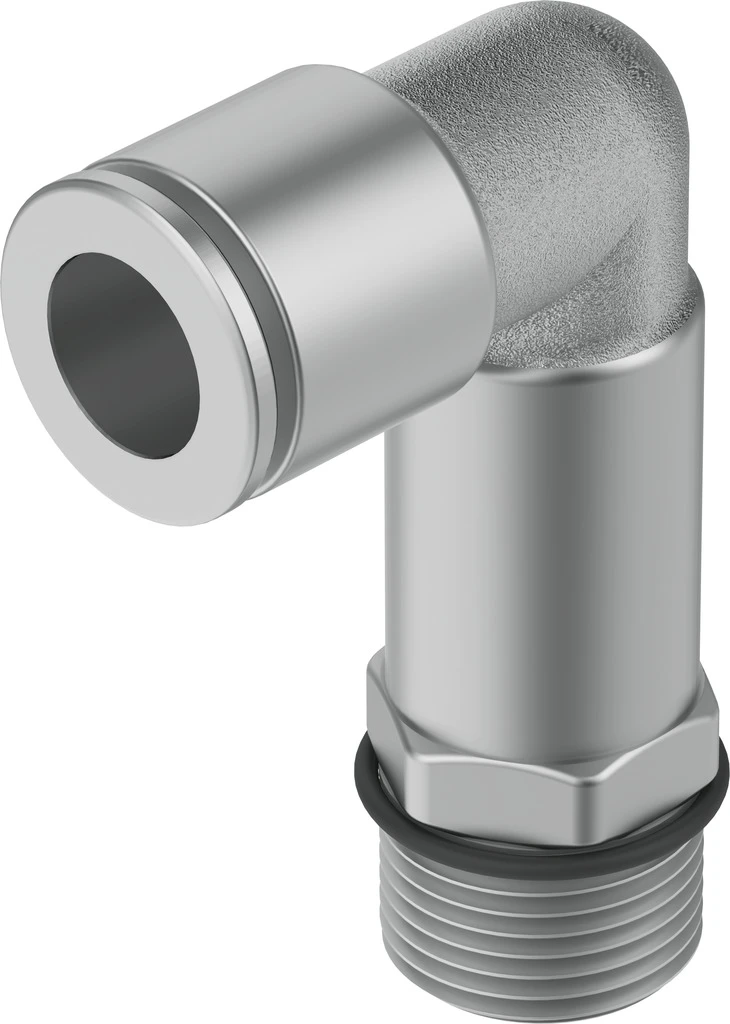

Push-in L-fitting, long, NPQH-LL-G14-Q8-P10

Specifications • Valve terminal MPA-C • Accessories, Push-in L-fitting, long • Pneumatic connection, port 1 Male thread G1/4 • Pneumatic connection, port 2 For tubing outside diameter of 8 mm • Ambient temperature 0 °C - 150 °C • Size Standard • Nominal size 6 mm • Tubing insertion depth 16 mm • Type of seal on screwed plug Sealing ring • Mounting position optional • Design L-shape, long • Size of pack 10 • Design Push-pull principle • Symbol 00997424 • Operating pressure complete temperature range -0.095 MPa ... 2 MPa • Operating pressure complete temperature range -0.95 bar ... 20 bar • Operating pressure complete temperature range -13.775 psi ... 290 psi
