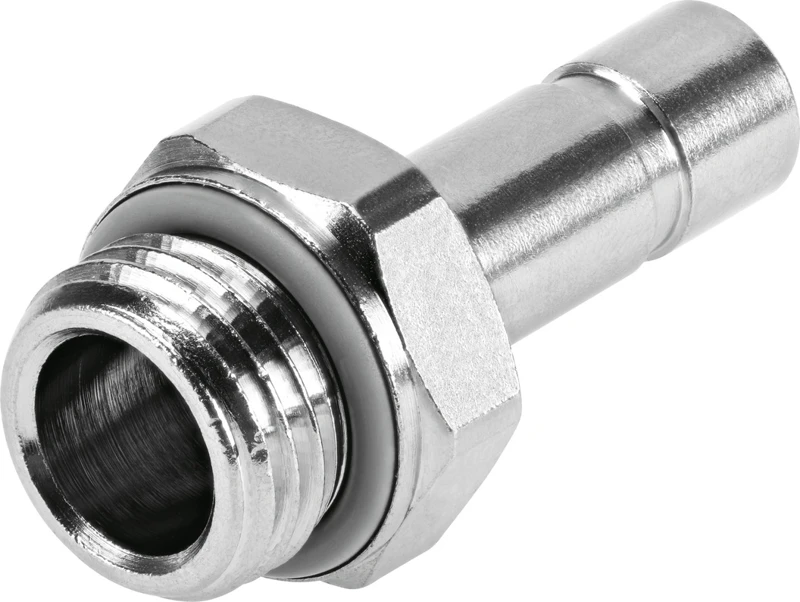

Push-in fitting, NPQH-D-G18-S6-P10
SKU: 578361
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Push-in fitting NPQH-D
• Pneumatic connection, port 1 Male thread G1/8
• Pneumatic connection, port 2 Push-in sleeve Ø 6 mm
• Ambient temperature 0 °C - 150 °C
• Size Standard
• Nominal size 4 mm
• Type of seal on screwed plug Sealing ring
• Mounting position optional
• Design Straight design
• Size of pack 10
• Design Push-pull principle
• Symbol 00997424
• Operating pressure complete temperature range -0.095 MPa ... 2 MPa
• Operating pressure complete temperature range -0.95 bar ... 20 bar
• Operating pressure complete temperature range -13.775 psi ... 290 psi
Buy currently uses Select Automation shop pricing and checkout.
Push-in fitting NPQH
• The chemically nickel-plated, corrosion-resistant and reliable push-in fitting NPQH can be combined with a wide variety of tubing, making it truly versatile: food-safe, heat resistant to 150°C, and suitable for high pressures.
• Solid-metal brass, chemically nickel-plated
• High corrosion and chemical resistance
• Highly resistant to temperatures and pressure
• Food grade see www.festo.com/certificates/NPQH
• Operating media compressed air, vacuum, water. Water as per the manufacturer's declaration, see www.festo.com/certificates/NPQH
• Straight shape, L-shape, T-shape, Y-shape, push-in bulkhead connector
