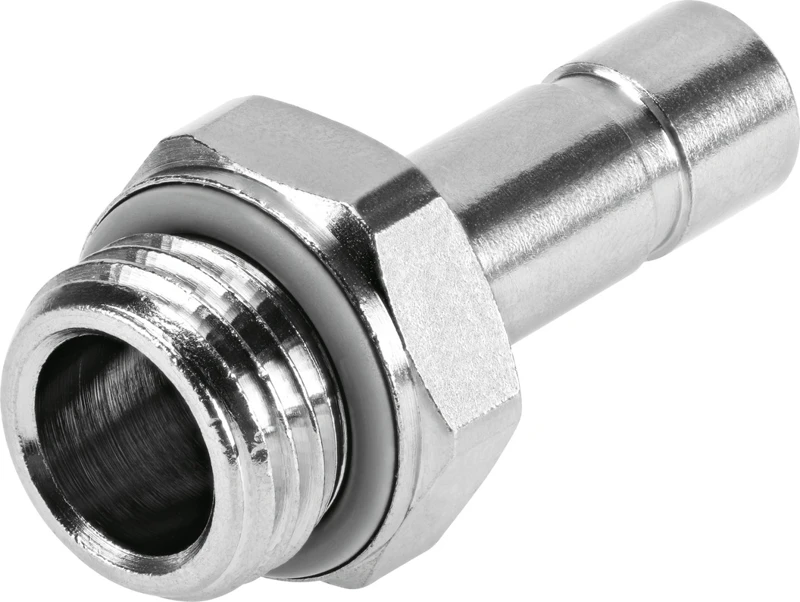

Push-in fitting, NPQH-D-G14-S12-P10
SKU: 578366
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Standards-based cylinders DSBC, ISO 15552
• Accessories, Push-in fitting
• Pneumatic connection, port 1 Male thread G1/4
• Pneumatic connection, port 2 Push-in sleeve Ø 12 mm
• Operating pressure complete temperature range -0.95 bar - 20 bar
• Ambient temperature 0 °C - 150 °C
• Nominal size 8.5 mm
Buy currently uses Select Automation shop pricing and checkout.
Standards-based cylinder DSBC
• Standards-based profile cylinder to ISO 15552 with a wide variety of mounting options.
• Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes
• ISO 15552 (ISO 6431, VDMA 24562)
• Standard profile with two sensor slots
• Wide range of variants for customised applications
• Comprehensive range of mounting accessories for just about every type of installation
• For position sensing
• Variants recommended for production systems for manufacturing lithium-ion batteries
