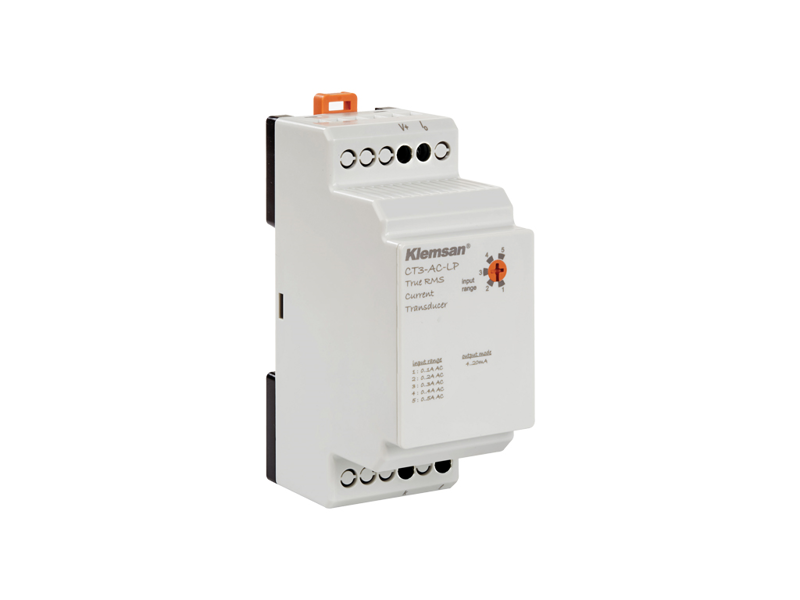

CT3 CURRENT TRANSDUCER 9-30VDC
SKU: 600104
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications:
CT3 TRMS current transducer
Casing Width (mm): 36
Connections: Screw terminal
Isolation: 1.5 kVrms, 2-way
Test Voltage between Input-Output: 4 kV during 1 min.
Linearity: < 0.2%
Response Time: 350ms
Ripple: <80mV
Accuracy: < 0.2% (full scale, 25°C)
Temperature Coefficient: 150 ppm/°C
Protection class: IP20
Mounting type: Panel or rail
Buy currently uses Select Automation shop pricing and checkout.
Technical Data:
Input Signal:
Frequency: 40-70 Hz
Surge Overload: 20xin (100 A) for 1 sec.
Constant Overload: 10A (2x Rated IN)
Input Impedances: 49.9 Ω (burden resistor)
Analog Output:
Max. Current: 24 mA
Max. Load: 10 Ω (for voltage) / 600 Ω (for current)
Supply Voltage:
DC: 9-30V
Power Consumption:
DC: < 1.5W
AC: < 4VA
Ambient Conditions:
Operating Temperature: -20°C +60°C
Storing Temperature: -40°C +75°C
Relative Humidity (No Condensation): Maks. 95%
