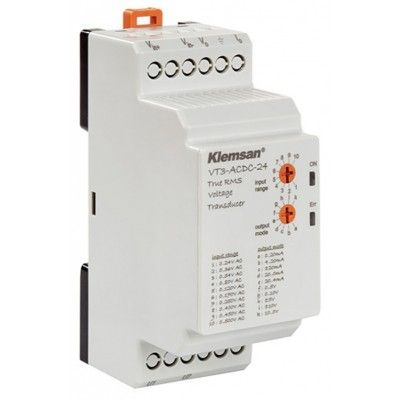

VT3-ACDC VOLT TRANSDUCER 10-36VDC
SKU: 600106
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications:
VT3-ACDC-24 TRMS voltage transducer
Casing Width (mm): 36
Connections: Screw terminal
Isolation: 1.5 kVrms, 3-way
Test Voltage between Input-Output: 4 kV during 1 min.
Linearity: < 0.2%
Response Time: 350ms
Ripple: < 80mV
Accuracy: < 0.2% (full scale, 25°C)
Temperature Coefficient: 150 ppm/°C
Protection class: IP20
Mounting type: Panel or rail
Buy currently uses Select Automation shop pricing and checkout.
Technical Data:
Input Signal:
Frequency: 40-70 Hz
Surge Overload: < 2xU Input Max. Range (5 pulses 1sec.)
Constant Overload: Max. 600V
Input Impedances: 240 kΩ
Analog Output:
Max. Current: 24 mA
Max. Voltage: 12V
Max. Load: 10 Ω (for voltage) / 600 Ω (for current)
Supply Voltage:
DC: 10-36V
Power Consumption:
DC: < 1.5W
AC: < 4VA
Ambient Conditions:
Operating Temperature: -20°C +60°C
Storing Temperature: -40°C +75°C
Relative Humidity (No Condensation): Maks. 95%
