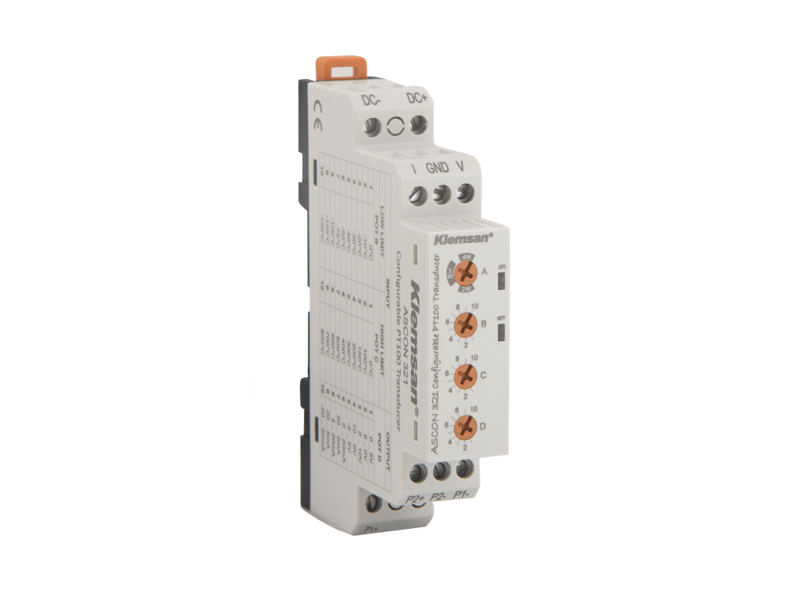

PT100 TEMPERATURE TRANSDUCER
SKU: 602310
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications:
ASCON 321 PT100 converter (configurable)
Casing Width (mm): 17,5
Connections: Screw terminal
Isolation: 3 way - 1,5 kV RMS
Measurement Error: < 0.2% (Full Scale)
Temperature Coefficient: ≤ 0.02%/°C
Response Time: < 150ms
Sensor Failure Indication: The situation of input signal is at least 10 % different than adjusted value.
Protection class: IP20
Mounting type: Rail Mounted
Buy currently uses Select Automation shop pricing and checkout.
Technical Data:
Input:
Sensor Type: PT100
Connection Method: 2 wire or 3 wire or 4 wire.
Temperature Measuring Range: -150°C +800°C Configurable
Sensor Excitation Current: < 0.5Ma
Output:
Output Signal: 0.5V, 0.20mA, 5.0V, 20.0mA, 0.10V, 4.20mA, 10.0V, 20.4mA, -5.5V, 20.20mA
Max. Load: ≤ 600 Ω (Current İnput), ≥ 10K Ω (Voltage Output)
Supply Voltage:
DC: 11-30V
Ambient Conditions:
Operating Temperature: -20°C +60°C
Storing Temperature: -40°C +75°C
Relative Humidity (No Condensation): Maks. 95%
