SIGNAL TEMPERATURE CONVERTER WITH RS485
SKU: 602400
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications:

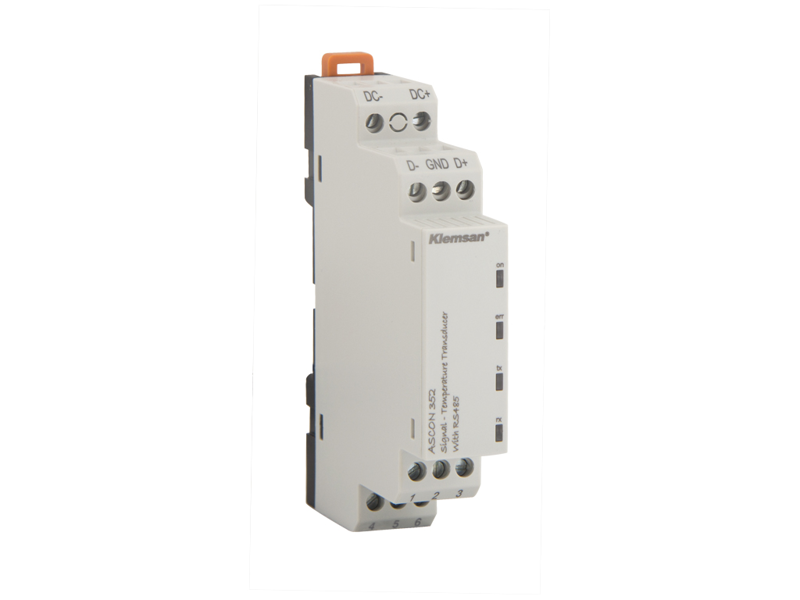

ASCON 352 Signal temperature converter (with RS485)
Casing Width (mm): 17,5
Connections: Screw terminal
Isolation: 3 way - 1,5 kV RMS
Measurement Error: < 0.1% (Full Scale)
Temperature Coefficient: ≤ 0.02% / °C
Response Time: < 10ms
Sensor Failure Indication: Voltage output mode: short circuit
Protection class: IP20
Mounting type: Rail mounted
Buy currently uses Select Automation shop pricing and checkout.
Technical Data:
Input:
Sensor Type: Mv, V, mA - PT100(2, 3, 4wire) - Thermocouple (J, K, E, R, S)
Connection Method: 2 wire or 3 wire or 4 wire.
Temperature Measuring Range: -150°C +800°C Configurable
Sensor Excitation Current: <0.5mA
Output:
Signal: RS485
Linear Range: 3.6mA - 23.6mA
Supply Voltage:
DC: 11-30V
Ambient Conditions:
Operating Temperature: -20°C +60°C
Storing Temperature: -40°C +75°C
Relative Humidity (No Condensation): Maks. 95%
EMC-EMI:
Radiated Emissions Test, 61000-6-2/AC: 2012, 61000-6-4: 2007/A1: 2011: Any
