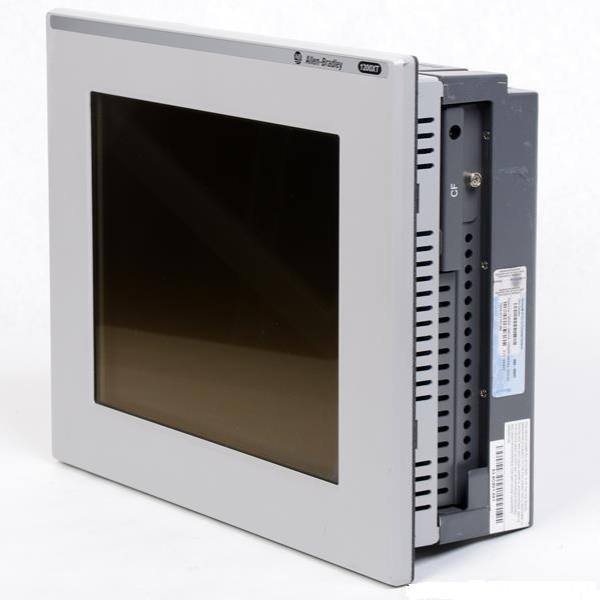

6181x Box Pc Tpm
SKU: 6181X-000NWNNDNB-3ABW21TG-N1S
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
This type is part of the 6181X XT Series of non-display Box PCs, which are intended for harsh industrial conditions, including hazardous areas.
It includes a hardware-based TPM, which improves security for applications that require secure boot, encryption, and credential protection.
Connectivity & Expansion:
Ethernet: Dual Gigabit Ethernet ports.
USB: Multiple USB 3.0 ports.
Serial: RS-232/422/485 support.
Expansion: M.2 slot for wireless or additional storage.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Form Factor: Box PC (no integrated display).
Processor: Intel® Celeron 6305E, Dual Core, 1.8 GHz.
Memory: 8 GB DDR4 RAM.
Storage: 128 GB SSD.
TPM: Hardware-based TPM (Trusted Platform Module).
Mounting: Back-panel or cabinet mount.
Operating Temp: -20°C to +70°C (-4°F to +158°F).
Power Supply: 24 VDC nominal.
Certifications: UL, CE, ATEX, UKEx, Class I Div 2 Hazardous Location.
Operating System: ThinManager-ready BIOS (no OS preinstalled).
