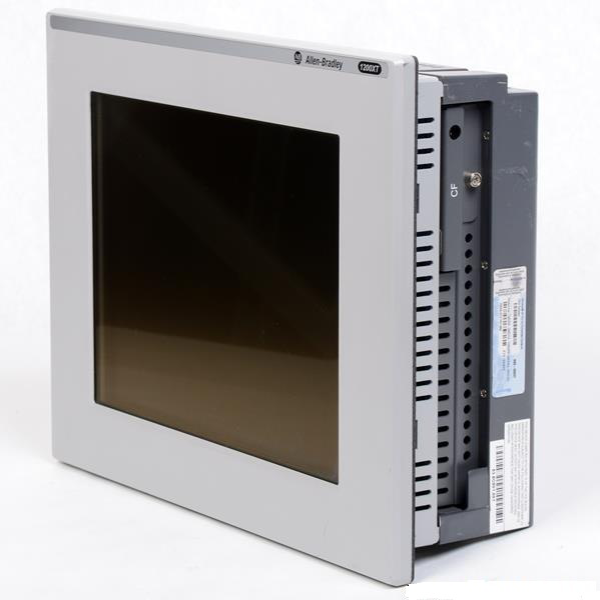

6181x 12in Panel Pc Ftpm
SKU: 6181X-121PPMXDNB-3ACW21FG-N1S
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 6181X-121PPMXDNB-3ACW21FG-N1S is a fan-less industrial Panel PC intended for use in extreme settings, particularly hazardous sites.
It has a 12-inch touchscreen, an Intel Core processor, and a firmware-based Trusted Platform Module (fTPM) that enables safe boot and encryption.
This paradigm is ThinManager Ready, allowing for centralized management in distributed control systems.
It is part of Rockwell Automation's XT (Extreme Temperature) range, designed to perform dependably in harsh industrial environments.
12-inch touchscreen display Rugged and compact, suitable for tight panel installations.
Intel® Core i-class processor Delivers reliable performance for HMI and control applications.
Fan-less design Reduces maintenance and improves durability in dusty or vibration-prone environments.
fTPM (Firmware Trusted Platform Module) Supports secure boot, BitLocker encryption, and device identity protection.
Wide operating temperature range –20°C to +70°C, ideal for extreme industrial environments.
ThinManager Ready BIOS Enables centralized deployment and management.
Certified for hazardous locations UL, CE, ATEX, UKEx, INMETRO, CCC Ex, EAC, KC, BSMI, BIS.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Display:
Size: 12-inch TFT touchscreen.
Resolution: 1024 × 768 (XGA).
Brightness: ~400 nits.
Touch Type: Analog resistive.
Processor:
Intel® Core™ i-class processor (exact model varies by configuration).
Memory:
RAM: 8 GB DDR4 (expandable depending on model).
Storage: 128 GB SSD (industrial grade).
Graphics:
Integrated Intel HD Graphics.
I/O Ports:
2 × Gigabit Ethernet (RJ45).
4 × USB 3.0.
1 × DisplayPort.
1 × Serial (RS-232/422/485).
Audio Line Out.
Expansion:
2 × Mini PCIe slots.
1 × mSATA slot.
Security:
Firmware TPM (fTPM) 2.0.
Secure Boot and BitLocker support.
Operating System:
Windows 10 IoT Enterprise (pre-installed or optional).
Environmental Ratings:
Operating Temp: –20°C to +70°C (–4°F to +158°F).
Storage Temp: –40°C to +85°C.
Humidity: 10–90% non-condensing.
Vibration: IEC 60068-2-6 compliant.
Certifications:
UL Class I Div 2.
ATEX, IECEx, UKEx.
CE, CCC, EAC, KC, BSMI, BIS.
Mounting:
Panel mount (sealed front bezel).
IP65 front rating.
Power Supply:
24 VDC input.
Power consumption: ~40 W typical.
Dimensions:
Approx. 310 mm × 240 mm × 70 mm.
Weight: ~3.5 kg.
