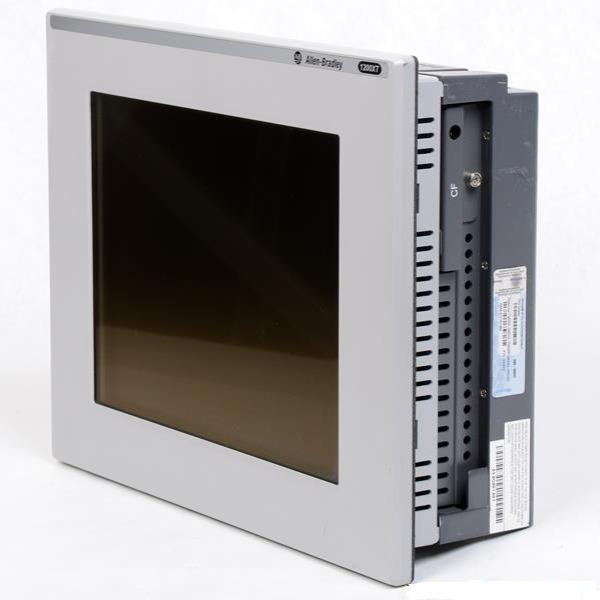

6181x 12in. Panel Pc No Tpm
SKU: 6181X-121PPMXDNB-3ADW21NG-N1S
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 6181X-121PPMXDNB-3ADW21NG-N1S is a fan-less, industrial-grade Panel PC intended for use in harsh conditions and hazardous areas.
It has a 12-inch analogue resistive touchscreen, an Intel Core processor, and ThinManager compatibility, making it perfect for centralized visualization and control in remote automation environments.
This model lacks a Trusted Platform Module (TPM), making it appropriate for installations where TPM-based security features such as secure boot or BitLocker encryption are not required.
12-inch XGA touchscreen (1024 × 768 resolution).
Intel® Core i-class processor.
Fan-less design for high reliability in dusty or vibration-prone environments.
8 GB DDR4 RAM and 128 GB SSD (typical configuration).
ThinManager Ready BIOS for centralized management.
Wide operating temperature range: –20°C to +70°C.
Certified for hazardous locations: UL, CE, ATEX, UKEx, CCC, EAC, KC, BSMI, BIS.
IP65-rated front bezel for dust and water resistance.
Multiple I/O ports: USB 3.0, Ethernet, DisplayPort, Serial.
Buy currently uses Select Automation shop pricing and checkout.
Processor & Memory:
CPU: Intel® Core i3-1115GRE Dual Core, 2.2 GHz (11th Gen Tiger Lake).
RAM Options: 16 GB, 32 GB, or 64 GB DDR4.
Storage: 256 GB, 512 GB, or 1 TB SSD.
Expansion:
1× CFAST card slot.
1× half-length PCIe x1 slot.
Display:
Size: 12.1-inch integrated display.
Resolution: 1024 × 768 (XGA), 4:3 aspect ratio.
Brightness: 1300 cd/m² (sunlight readable).
Touchscreen: Analog resistive (supports dry/damp touch, gloves).
Service Life: 100,000 hours at 25°C.
Optional Accessory: Sun shield (6189X-SUNSHIELD) for outdoor use.
Environmental Ratings:
Operating Temperature:
Inside cabinet: –20°C to +70°C.
Outside cabinet (display side): –20°C to +55°C.
Power Input: 18–32 VDC.
Ingress Protection: UL Type 1, 4, 4X, 12, 13; IP66 front bezel.
Connectivity:
2× COM ports.
4× USB 3.0 ports.
2× 1 Gb Ethernet ports.
1× DisplayPort.
1× DVI port.
Security & OS:
TPM: None (this model ships without TPM).
OS: Windows 10 IoT Enterprise (compatible with Windows 11 IoT).
ThinManager Ready: BIOS supports centralized management.
Certifications:
Hazardous location approvals:
cULus Class I Div 2 / Class I Zone 2.
ATEX, UKEx, CCC Ex, INMETRO.
Global shipping certifications: CE, EAC, KC, BSMI, BIS.
