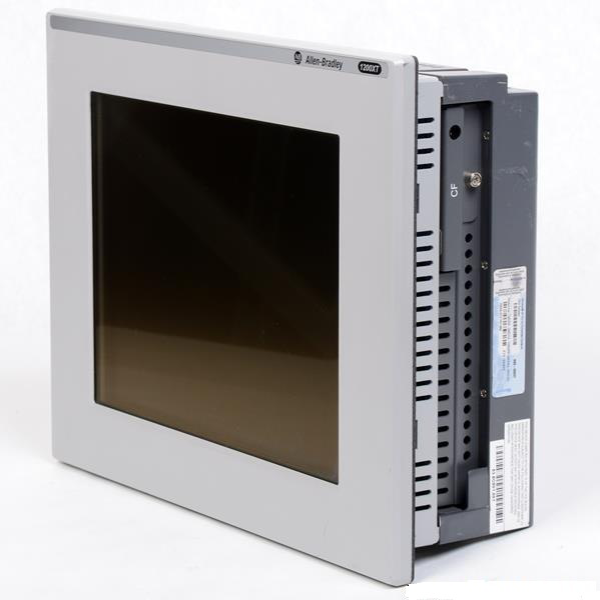

6181x 12in Panel Pc Tpm
SKU: 6181X-121PPMXDNB-3BBW21TG-N1S
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 6181X-121PPMXDNB-3BBW21TG-N1S is a high-performance, fan-less industrial panel PC intended for use in difficult and hazardous settings.
It includes a 12.1-inch analogue resistive touchscreen, an Intel Core processor, and a Trusted Platform Module (TPM 2.0) for added security.
This paradigm is ThinManager Ready, allowing for centralized management in distributed control systems.
It is part of Rockwell Automation's XT (Extreme Temperature) range, designed to perform dependably in harsh industrial environments.
12.1-inch XGA touchscreen (1024 × 768 resolution).
Intel® Core i-class processor.
Fan-less design for silent, low-maintenance operation.
TPM 2.0 hardware module for secure boot, BitLocker, and device identity.
ThinManager Ready BIOS for centralized deployment.
Wide operating temperature range: –20°C to +70°C.
Certified for hazardous locations: UL, CE, ATEX, UKEx, CCC, EAC, KC, BSMI, BIS.
I/O ports: USB 3.0, Ethernet, DisplayPort, Serial.
24 VDC isolated power input.
IP65-rated front bezel for dust and water resistance.
Buy currently uses Select Automation shop pricing and checkout.
Processor & Memory:
CPU: Intel® Core i3-1115GRE, Dual Core, 2.2 GHz (11th Gen Tiger Lake).
RAM: Options for 16 GB, 32 GB, or 64 GB DDR4.
Storage:
Solid State Drive (SSD): 256 GB, 512 GB, or 1 TB.
CFast card slot.
One half-length PCIe x1 expansion slot.
Display & Touchscreen:
Size: 12.1-inch.
Resolution: 1024 × 768 (XGA), 4:3 aspect ratio.
Brightness: 1300 cd/m² (sunlight readable).
Touch: Analog resistive touchscreen.
Service Life: 100,000 hours at 25°C.
Touch Modes: Supports dry, damp, thin gloves, and thick gloves.
Connectivity & I/O Ports:
2 × COM ports (serial).
4 × USB 3.0 ports.
2 × Gigabit Ethernet ports.
1 × DisplayPort.
1 × DVI port.
Security & Software:
TPM: Hardware Trusted Platform Module (TPM 2.0).
OS: Windows 10 IoT Enterprise (compatible with Windows 11 IoT Enterprise).
ThinManager Ready: BIOS supports centralized management.
Environmental Ratings:
Operating Temp:
Inside cabinet: –20°C to +70°C.
Outside cabinet (display side): –20°C to +55°C.
Power Input: 18–32 VDC (isolated).
Ingress Protection: UL TYPE 1, 4, 4X, 12, 13 and IP66.
Certifications: UL, CE, ATEX, UKEx, CCC, EAC, KC, BSMI, BIS.
Additional Features:
Fan-less design for quiet operation.
Cloning utility for system backup and restore.
Optional sun shield accessory (6189X-SUNSHIELD).
