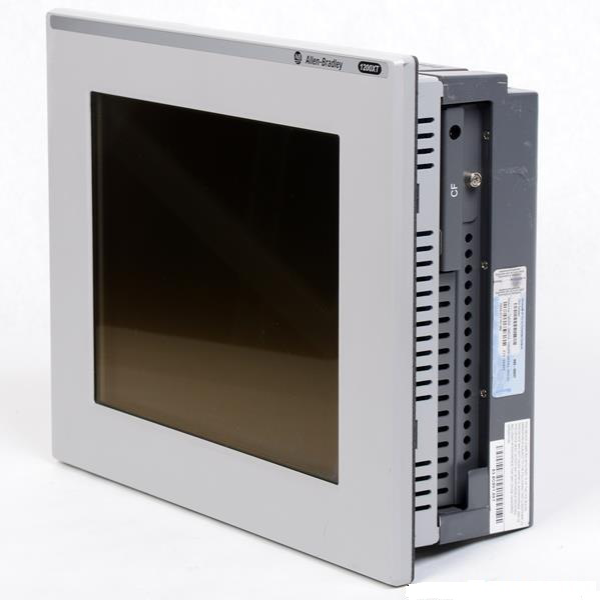

6181x 12in Panel Pc Tpm
SKU: 6181X-121PPMXDNB-3CCW21TG-N1S
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 6181X-121PPMXDNB-3CCW21TG-N1S is a high-performance, fan-less industrial panel PC intended for use in hazardous and harsh situations.
It has a 12.1-inch analogue resistive touchscreen, an Intel Core processor, and a dedicated TPM 2.0 chip to ensure safe boot, BitLocker encryption, and device identity protection.
This model is ThinManager Ready, which allows for centralized management and deployment across industrial networks.
It is part of Rockwell Automation's XT (Extreme Temperature) line, which is designed to work reliably in harsh environments.
12.1-inch XGA touchscreen (1024 × 768 resolution).
Intel® Core i-class processor.
TPM 2.0 hardware module for enhanced cybersecurity.
Fan-less design for silent, low-maintenance operation.
ThinManager Ready BIOS for centralized deployment.
Wide operating temperature range: –20°C to +70°C.
Certified for hazardous locations: UL, CE, ATEX, UKEx, CCC, EAC, KC, BSMI, BIS.
I/O ports: USB 3.0, Ethernet, DisplayPort, Serial.
24 VDC isolated power input.
IP66-rated front bezel for dust and water resistance.
Buy currently uses Select Automation shop pricing and checkout.
Processor & Memory:
CPU: Intel® Core i3-1115GRE, Dual Core, 2.2 GHz (11th Gen Tiger Lake).
RAM: Options for 16 GB, 32 GB, or 64 GB DDR4.
Storage:
Solid State Drive: 256 GB, 512 GB, or 1 TB SSD.
Expansion: 1 CFAST card slot, 1 half-length PCIe x1 slot.
Display & Touchscreen:
Size: 12.1-inch diagonal.
Resolution: 1024 × 768 (XGA), 4:3 aspect ratio.
Brightness: 1300 cd/m² (sunlight readable).
Touch: Analog resistive touchscreen.
Service Life: 100,000 hours at 25°C.
Touch Modes: Supports dry, damp, thin gloves, and thick gloves.
Security & TPM:
TPM: Hardware TPM 2.0 module.
OS Support: Windows 10 IoT Enterprise, compatible with Windows 11 IoT Enterprise.
ThinManager: BIOS is ThinManager Ready.
Environmental Ratings:
Operating Temperature:
Inside cabinet: –20°C to +70°C (–4°F to +158°F).
Outside cabinet (display side): –20°C to +55°C (–4°F to +131°F).
Ingress Protection: UL Type 1, 4, 4X, 12, 13; IP66-rated front bezel.
Certifications: UL, CE, ATEX, UKEx, CCC, EAC, KC, BSMI, BIS.
Connectivity & I/O Ports:
Ethernet: 2 × 1 GB Ethernet ports.
USB: 4 × USB 3.0 ports.
Serial: 2 × COM ports.
Video Output: 1 × DisplayPort, 1 × DVI.
Power Input: 18–32 VDC (isolated).
Additional Features:
Cloning Utility: Built-in system backup and restore tool.
Mounting: Panel mount with optional sun shield accessory.
Use Case: Designed for hazardous locations and extreme environments (chemical, mining, oil & gas, etc.).
