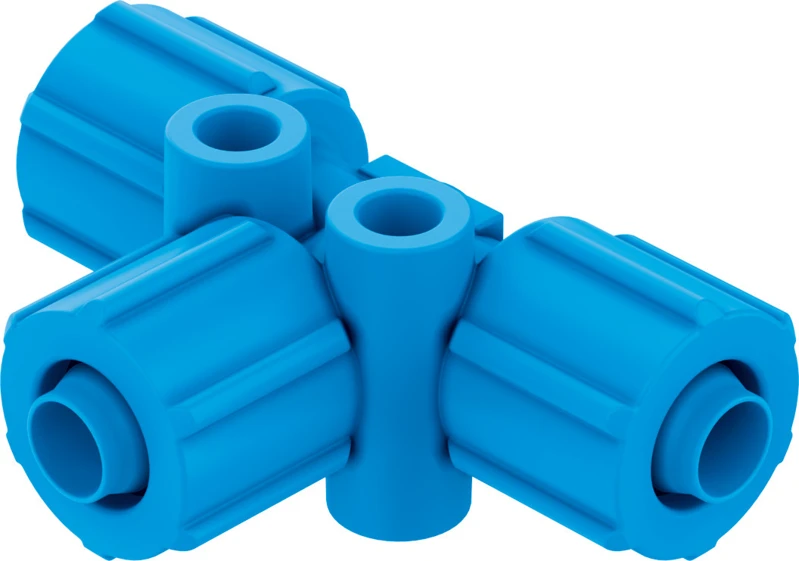

T-distributor, FCK-3-PK-9-KU

Specifications • T quick connectors FCK, T-distributor FCK- ...-KU • Nominal size 8 mm • Mounting position optional • Design T-shape • Size of pack 10 • Operating pressure complete temperature range -0.095 MPa ... 1 MPa • Operating pressure complete temperature range -0.95 bar ... 10 bar • Operating pressure complete temperature range -13.775 psi ... 145 psi • Operating medium Compressed air to ISO 8573-1:2010 [7:-:-] • Pneumatic connection, port 1 For barbed fitting inside diameter of 9 mm with union nut • Pneumatic connection, port 2 For barbed fitting inside diameter of 9 mm with nut • Ambient temperature -10 °C - 60 °C
