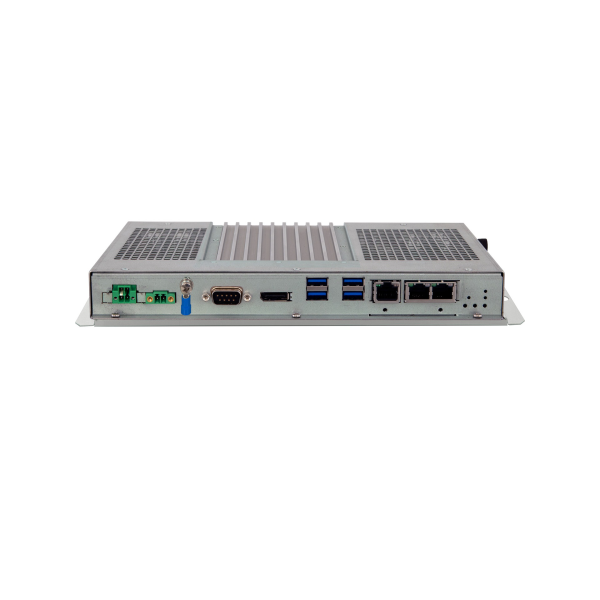

ASEM 6300B EW1 Box PC
SKU: 6300B-EW1AANN-AANNNNNNN-NNNNN
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
This model is intended for cost-effective industrial computing with versatile configuration possibilities.
It's suited for simple HMI, data gathering, and edge applications in situations when space and budget are constrained.
Fan-less Design: Silent and reliable for industrial environments.
ThinManager BIOS: Enables secure, centralized application deployment.
Atom x6425E Processor: Efficient for lightweight control and visualization tasks.
Flexible Storage: M.2 NVMe, CFast, and optional SATA SSD.
Cybersecurity-Ready: Reduces attack surface with centralized management.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Processor: Intel® Atom x6425E (2.0 GHz base / 3.0 GHz burst, 4 cores / 4 threads).
Memory: Up to 16 GB DDR4 RAM.
Storage Options: M.2 NVMe SSD (up to 1 TB), bootable CFast (up to 240 GB), optional 2.5" SATA SSD.
Display Support: DisplayPort++.
USB Ports: 4 × USB 3.1 Gen2 (10 Gbps), optional USB 2.0.
Serial Port: 1 × RS232/422/485 isolated (DB9M).
Ethernet: 1 × 2.5 GbE + 2 × 1 GbE (RJ45).
Power Input: 24 VDC SELV.
Mounting Type: Book/DIN rail mount.
Cooling: Fan-less.
Operating System: Windows 10 IoT Enterprise LTSC (optional).
ThinManager Ready: Yes (BIOS preinstalled).
FactoryTalk Ready: Includes FactoryTalk® Remote Access Basic license.
Lifecycle Status: Active.
